Fixed Smoke Curtain is a permanently installed passive smoke barrier designed to restrict the horizontal movement of smoke beneath ceilings and support effective smoke control during a fire emergency. Unlike an automatic smoke curtain, a Fixed Smoke Curtain remains in its operating position at all times and requires no motor, roller, control panel or automatic deployment system.
Manufactured by Huadun Door Industry, a professional Fixed Smoke Curtain manufacturer and OEM supplier, the system combines heat-resistant flexible smoke barrier fabric, durable mounting profiles and a reinforced bottom rail to provide a reliable and low-maintenance smoke containment solution.
The Static Smoke Curtain is primarily used to create smoke reservoirs, divide large ceiling spaces into controlled smoke zones and guide smoke toward natural or mechanical smoke extraction systems. Its lightweight design allows easy integration into commercial, industrial and public buildings without affecting the building's architectural appearance.
As an experienced Smoke Curtain manufacturer, Huadun provides customized Fixed Smoke Curtains, Static Smoke Curtains and Passive Smoke Barrier solutions based on project dimensions, ceiling layouts and smoke-control requirements, with OEM manufacturing and engineering support for global construction projects.
Effective smoke control is essential for protecting occupants and supporting safe evacuation during a fire. A Fixed Smoke Curtain creates a permanent smoke barrier beneath the ceiling, helping contain smoke, reduce smoke migration and improve the performance of the building's smoke management system.
Because the Fixed Smoke Curtain remains permanently installed, it provides continuous smoke containment without motors, electrical components or automatic deployment. Its simple structure reduces maintenance while delivering reliable long-term performance.
The curtain forms the boundary of a smoke reservoir, allowing smoke to be contained within a designated zone before being directed toward natural or mechanical smoke extraction systems. This improves smoke compartmentation and supports safer evacuation during an emergency.
Manufactured from lightweight, heat-resistant fabric, the Fixed Smoke Curtain offers a practical alternative to rigid smoke screens while reducing structural load and simplifying installation. Curtain width, drop height and mounting configurations can be customized to meet different architectural and smoke control requirements.
As a professional Fixed Smoke Curtain manufacturer, Huadun provides customized Passive Smoke Barrier solutions with OEM manufacturing and engineering support for commercial, industrial and public construction projects worldwide.
A Fixed Smoke Curtain provides continuous smoke control by remaining permanently installed below the ceiling. Unlike an automatic smoke curtain, it requires no deployment, electrical power or activation during a fire emergency, ensuring reliable performance with minimal maintenance.
The Fixed Smoke Curtain forms a permanent smoke barrier that limits horizontal smoke movement beneath the ceiling. It helps define smoke zones, reduce smoke migration and improve the efficiency of the building's smoke management system.
The Static Smoke Curtain helps create and maintain a smoke reservoir, allowing smoke to be contained within a designated area before being directed toward natural or mechanical smoke extraction systems.
Because the system has no motor, roller, control panel or automatic release mechanism, the Passive Smoke Barrier offers a simple structure with fewer components to inspect or maintain, making it ideal for long-term smoke control applications.
Manufactured from heat-resistant flexible smoke barrier fabric, the Fixed Smoke Curtain offers a lightweight alternative to rigid steel or glass smoke screens. Its compact construction simplifies installation while reducing structural load.
Huadun manufactures Fixed Smoke Curtains in customized widths, curtain drops and mounting configurations to match different architectural layouts and smoke control requirements.
As a permanently installed Passive Smoke Barrier, the curtain provides continuous smoke containment without affecting normal building operation. Its simple design ensures stable performance and long service life.
The Fixed Smoke Curtain works with natural or mechanical smoke extraction systems to create defined smoke zones and improve the building's overall smoke management strategy.

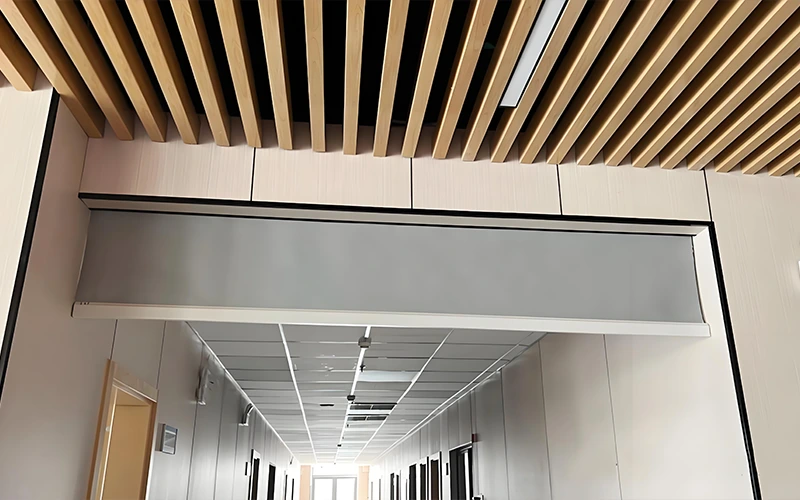

● Heat-resistant smoke barrier fabric
● Upper mounting profile
● Reinforced bottom rail
● Supporting brackets and fixing components
Unlike an automatic smoke curtain, the system contains no motor, roller or control unit.

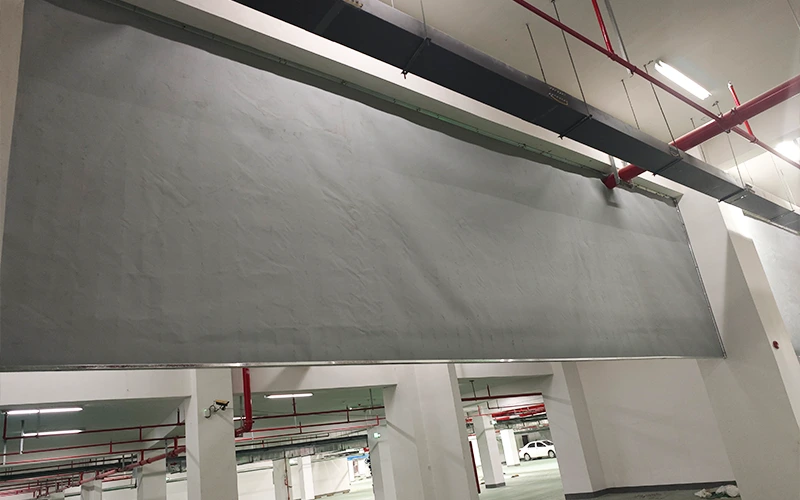

The Fixed Smoke Curtain remains permanently installed beneath the ceiling or structural beam, forming a continuous smoke barrier without affecting normal building use.

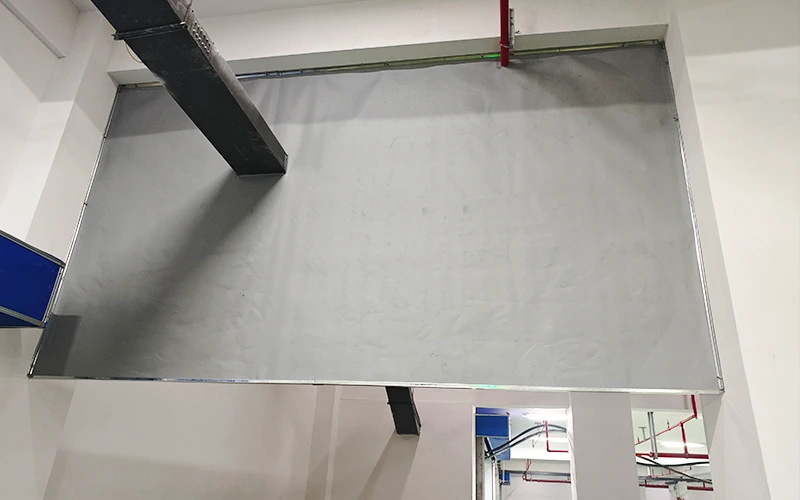

1.Smoke rises and spreads beneath the ceiling.
2.The Fixed Smoke Curtain restricts horizontal smoke movement.
3.A smoke reservoir is formed within the designated smoke zone.
4.Smoke is directed toward natural or mechanical smoke extraction systems.
5.The Passive Smoke Barrier helps improve smoke compartmentation and supports safer evacuation.
| Product Type | Specification |
| Product Name | Fixed Smoke Curtains |
| Common Technical Name | Fixed Smoke Curtain / Static Smoke Curtain / Fixed Smoke Barrier |
| Product Type | Passive smoke barrier |
| Primary Function | Smoke containment and smoke channelling |
| Installation Position | Below ceiling / structural beam |
| Operating Condition | Permanently deployed |
| Curtain Material | Flexible heat-resistant smoke barrier fabric |
| Deployment System | Not required |
| Motor | Not required |
| Control Panel | Not required |
| Fire Alarm Interface | Not required for basic fixed configuration |
| Upper Structure | Fixed mounting rail / profile |
| Lower Structure | Stabilizing bottom rail / profile |
| Curtain Drop | Customized according to smoke-control design |
| Width | Customized according to project dimensions |
| Smoke Extraction Integration | According to building smoke-control strategy |
| Installation | Project-specific fixed installation |
| Applicable Standard | According to project requirements and tested product configuration |
| Customization | OEM dimensions, curtain drops, fixing structures and finishes |
Fixed Smoke Curtains are ideal for buildings requiring a permanent smoke barrier without affecting normal circulation or architectural design.
Commercial Buildings
Shopping malls
Office buildings
Hotels
Retail centres
Large entrance halls
Industrial Facilities
Factories
Warehouses
Workshops
Manufacturing plants
Storage facilities
Public Buildings
Airports
Railway stations
Exhibition centres
Hospitals
Public facilities
Typical Smoke Control Applications
Smoke reservoirs
Smoke compartmentation
Smoke extraction zones
Large ceiling spaces
Separation between adjacent smoke zones

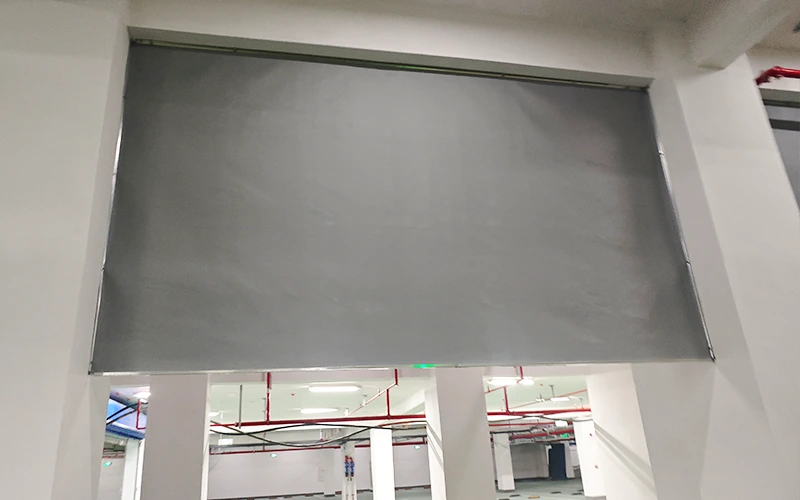

● Customized curtain width
● Customized curtain drop
● Ceiling-mounted or beam-mounted installation
● Different smoke barrier fabrics
● Long-span curtain systems
● Customized fixing profiles and bottom rails
● OEM branding
● Project-specific manufacturing
A Fixed Smoke Curtain is a permanently installed passive smoke barrier designed to restrict horizontal smoke movement beneath the ceiling. It helps create smoke reservoirs and supports the building's overall smoke control strategy.
A Fixed Smoke Curtain remains permanently installed and requires no motor or control system. An Automatic Smoke Curtain stays concealed until activated by the fire alarm system, then deploys automatically to control smoke movement.
No. Because the Fixed Smoke Curtain has no motorized or automatic operating mechanism, it normally requires no electrical power, making it a simple and reliable passive smoke barrier.
Yes. The curtain helps create defined smoke reservoirs and directs smoke toward natural or mechanical smoke extraction systems, improving overall smoke management performance.
Yes. Huadun manufactures Fixed Smoke Curtains in customized widths, curtain drops, mounting configurations and finishes to meet different project and architectural requirements. OEM manufacturing and engineering support are also available.
They are widely installed in shopping malls, airports, hotels, warehouses, factories, office buildings and exhibition centres, where permanent smoke control is required without restricting daily building operation.
