Hard Fast Door is a rigid high-speed industrial door designed for factories, warehouses, logistics centers, parking facilities and other high-traffic entrances where speed, security, wind resistance and thermal insulation are important.
Unlike a conventional PVC high-speed door, which uses a flexible curtain, this system uses rigid aluminum alloy slats or insulated panels to create a stronger and more durable door curtain.
Manufactured by Huadun Door Industry, a professional Hard Fast Door manufacturer and OEM supplier, the system combines rigid door panels, high-speed drive technology, guide tracks, automatic controls and safety devices for demanding industrial applications.
Depending on the configuration, the rigid sections can move through a turbo or spiral track system, allowing the door to open rapidly while storing the rigid panels above the opening.
Huadun provides customized Hard Fast Doors, Rigid High Speed Doors and High Speed Spiral Door solutions based on opening dimensions, traffic frequency, wind conditions, insulation requirements and control needs.
Industrial entrances often need to balance fast traffic flow with security, durability and environmental separation.
A flexible PVC rapid door is suitable for many internal applications, but exterior openings or high-traffic entrances may require a more rigid structure. A Hard Fast Door uses interconnected aluminum alloy sections to provide a stronger physical barrier while maintaining rapid automatic operation.
The door leaf consists of rigid horizontal sections connected together and guided by rollers inside reinforced side tracks. When an opening signal is received, the drive system lifts the sections vertically. In a spiral or turbo configuration, the sections then move into an overhead storage path above the doorway.
This operating principle avoids the need to tightly roll rigid panels around a conventional shaft and helps reduce contact between sections during movement. The result is fast, controlled operation with reduced obstruction around the entrance.
For improved thermal separation, the door can use double-wall insulated aluminum sections. The insulated construction helps reduce heat transfer when the door is closed and is suitable for facilities where indoor and outdoor temperatures differ.
The rigid aluminum curtain also provides greater structural strength and wind resistance than a flexible PVC curtain, making the door suitable for selected exterior industrial applications.
The complete system can be configured with radar sensors, vehicle loop detectors, remote controls, push buttons or access-control interfaces. Safety equipment such as photocells, light curtains and safety edges can also be integrated according to the project requirements.
Huadun manufactures each door according to the actual opening size, building structure, operating frequency, wind exposure and access-control requirements, providing OEM production and project-specific solutions for industrial customers.
The Hard Fast Door uses rigid aluminum alloy slats or panels instead of a flexible fabric curtain.
This construction provides greater rigidity, physical protection and resistance to external conditions. Double-wall aluminum sections can also be used where improved thermal performance is required.
The door is designed for rapid opening and closing in high-traffic industrial environments.
Fast operation reduces vehicle waiting time and minimizes the period during which the entrance remains open. The drive system and operating speed are selected according to the door dimensions, weight and required duty cycle.
A turbo or spiral track guides the rigid sections into an overhead storage path when the door opens.
Instead of tightly winding the rigid sections around a conventional roller shaft, the track controls their movement and storage. This helps provide smooth operation and can reduce unnecessary contact and wear between the panels.
The rigid aluminum curtain and reinforced guide structure provide higher resistance to wind pressure than many flexible high-speed doors.
This makes the system suitable for selected exterior entrances where wind exposure is an important design consideration.
Actual wind resistance depends on the door size, guide structure, reinforcement and local design loads.
For applications requiring thermal separation, the door can be configured with insulated double-wall aluminum sections.
This helps reduce heat transfer through the closed entrance and is suitable for:
● Factories
● Warehouses
● Logistics facilities
● Air-conditioned workshops
● Exterior industrial entrances
When closed, the rigid metal curtain provides a stronger physical barrier than a flexible PVC curtain.
This makes the door suitable for entrances where rapid access must be combined with a higher level of physical protection and controlled access.
The door can be integrated with different activation systems according to the traffic pattern, including:
● Radar sensors
● Vehicle loop detectors
● Remote controls
● Push buttons
● Pull-cord switches
● Access-control systems
● Production-line interfaces
Automatic activation allows vehicles and personnel to pass through busy entrances with minimal interruption.
High-speed operation requires appropriate safety protection. Depending on the configuration, the system can include:
● Photoelectric sensors
● Safety light curtains
● Bottom safety edges
● Obstacle detection
● Emergency stop
● Warning lights
● Automatic reversing
The final safety configuration should be selected according to the motor, controller and application.
Huadun can customize the Rigid High Speed Door according to:
● Opening width and height
● Required operating speed
● Traffic frequency
● Wind exposure
● Insulation requirements
● Panel configuration
● Track arrangement
● Motor and controller
● Safety devices
● Activation method
● Surface finish and color
This project-based approach allows the complete door system to be matched to the actual installation conditions.

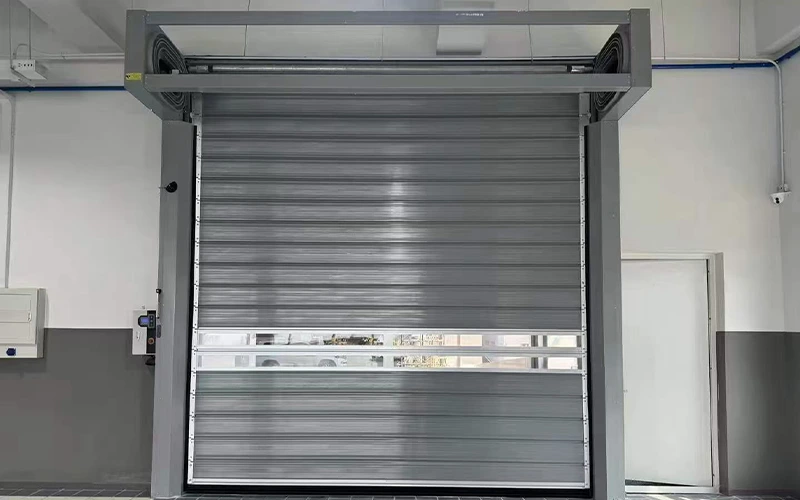

A typical High Speed Spiral Door consists of:
● Rigid aluminum alloy door slats / panels
● Insulated panel core where required
● Reinforced side guide rails
● Turbo / spiral track system
● High-speed drive motor
● Transmission system
● Control panel
● Lifting mechanism
● Safety sensors
● Activation devices
● Supporting structure

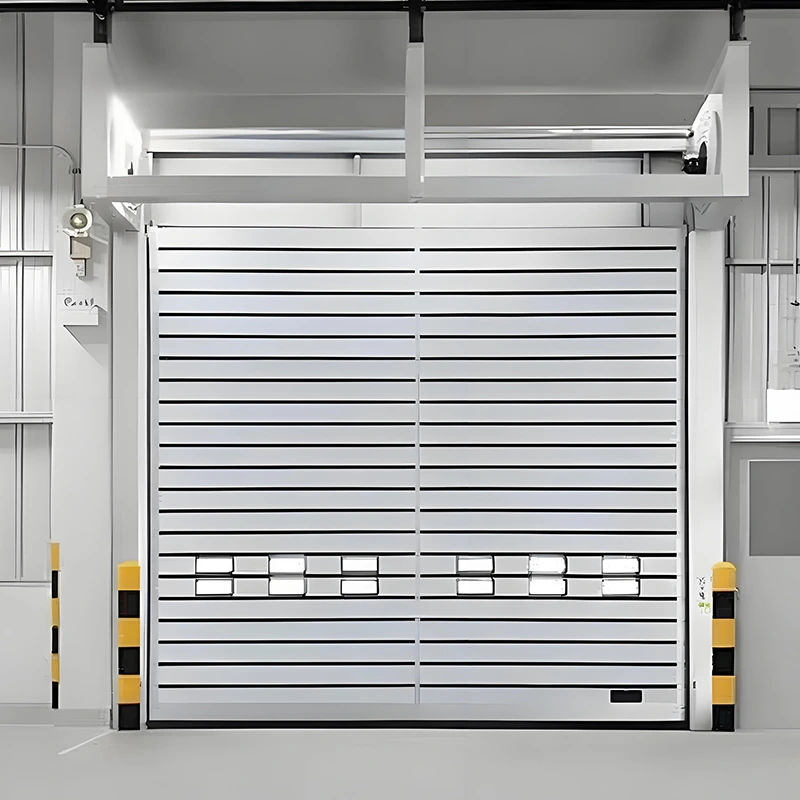

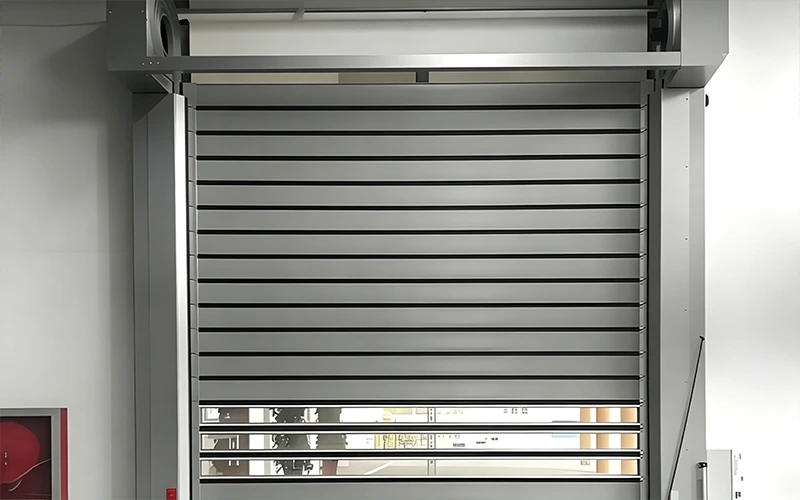

1.The radar sensor, loop detector, remote control or other device sends an opening command.
2.The controller activates the high-speed drive.
3.The rigid sections move vertically through the side guides.
4.The sections enter the turbo or spiral track.
5.The track guides the sections into the overhead storage position.
6.The door reaches the programmed open position.
7.Vehicles, equipment or personnel can pass through the entrance.

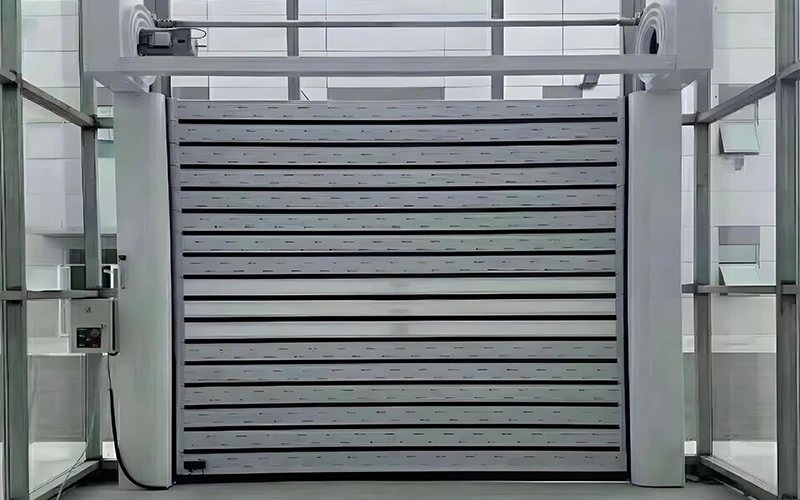

1.After traffic has passed, the controller initiates the closing sequence;
2.The rigid sections leave the upper storage track;
3.The door travels vertically downward through the guide system;
4.Safety sensors continuously monitor the doorway;
5.If an obstruction is detected, the system responds according to the selected safety-control logic;
6.The rigid curtain reaches the floor;
7.The entrance returns to its closed, secure and insulated condition.
The operating principle combines rapid door movement with a rigid closed barrier, which is the fundamental difference between a Hard Fast Door and a flexible PVC High Speed Door.
| Product Type | Specification |
| Product Name | Hard Fast Door |
| Common Technical Name | Rigid High Speed Door / High Speed Spiral Door |
| Door Type | Rigid high-speed industrial door |
| Door Curtain | Rigid aluminum alloy slats / panels |
| Panel Structure | Single / double-wall structure according to configuration |
| Insulation | Insulated panel option |
| Opening Direction | Vertical upward |
| Upper Track | Turbo / spiral track system |
| Operation | Motorized automatic |
| Drive System | High-speed industrial drive |
| Control System | Intelligent controller |
| Operating Speed | Configured according to door size and selected drive system |
| Guide System | Reinforced side guide rails |
| Automatic Closing | Adjustable according to control requirements |
| Activation | Radar / Loop detector / Remote / Push button / Customized |
| Safety Devices | Photocell / Light curtain / Safety edge according to configuration |
| Wind Resistance | According to door dimensions and project design load |
| Thermal Performance | According to selected panel construction |
| Surface Finish | Aluminum / coated finish |
| Color | Customized |
| Installation | Interior / exterior according to selected configuration |
| Size | Customized according to opening dimensions |
| Power Supply | According to project electrical requirements |
| Customization | OEM dimensions, panels, controls, safety systems and access methods |
Hard Fast Doors are suitable for industrial and commercial entrances where rapid access needs to be combined with rigidity, security and environmental protection.
Factories & Manufacturing Facilities
Production plants
Automotive factories
Machinery manufacturing facilities
Assembly facilities
Industrial workshops
External production entrances
Rigid high-speed doors are widely used in demanding manufacturing environments because they combine rapid operation with durable metal construction.
Warehouses & Logistics Centers
Warehouses
Distribution centers
Logistics facilities
Shipping areas
Vehicle entrances
High-traffic industrial passages
Fast opening and closing helps reduce waiting time while the rigid curtain provides a stronger barrier when the entrance is closed.
Parking & Vehicle Facilities
Underground parking garages
Commercial parking entrances
Vehicle dealerships
Automotive service facilities
Fleet entrances
Exterior Industrial Openings
Factory exterior entrances
Warehouse exterior doors
Wind-exposed industrial entrances
Temperature-controlled building boundaries
Secure industrial access points
For interior applications where maximum speed and environmental separation are the main priorities, a flexible PVC high-speed door may be more appropriate.

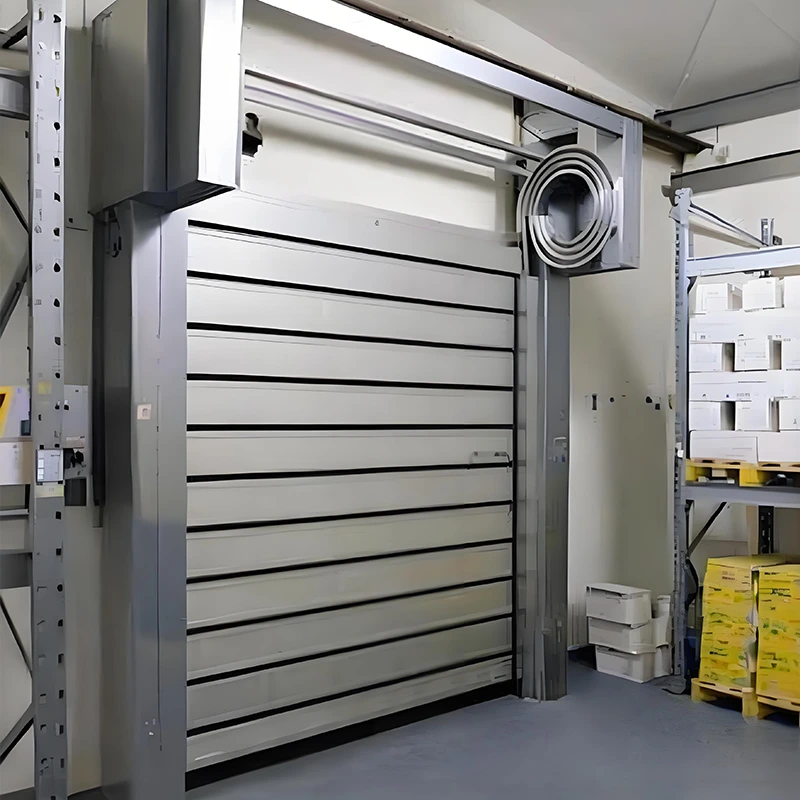

● Customized door dimensions
● Rigid aluminum alloy slats
● Insulated double-wall panels
● Customized panel finish
● Customized colors
● Turbo / spiral track arrangement
● High-speed motor system
● Intelligent controller
● Radar activation
● Vehicle loop detector
● Remote control
● Push-button control
● Pull-cord switch
● Access-control interface
● Photoelectric safety sensors
● Safety light curtain
● Bottom safety edge
● Automatic reversing function
● Warning light
● Emergency stop
● Manual emergency release
● Optional vision sections where structurally applicable
● OEM branding and project-specific production
The final configuration should be selected according to opening dimensions, traffic frequency, wind conditions, insulation requirements and required security level.
A Hard Fast Door is a rigid high-speed industrial door that combines rapid automatic operation with a solid aluminum alloy door curtain. It is also commonly known as a Rigid High Speed Door or High Speed Spiral Door.
The main difference is the door curtain. A PVC high-speed door uses a flexible fabric curtain, while a Hard Fast Door uses rigid aluminum sections. The rigid construction provides greater structural strength, security and wind resistance, making it suitable for selected exterior and high-traffic industrial entrances.
Rigid aluminum sections provide a stronger physical barrier when the door is closed. They are particularly suitable where the entrance requires:
● Greater security
● Improved wind resistance
● Better thermal separation
● Exterior installation
● More rigid structural protection
A spiral track system guides the rigid door sections into an overhead storage path during opening. Instead of tightly winding the rigid panels around a conventional shaft, the sections move through a controlled track, supporting smooth and rapid operation.
Yes. A Hard Fast Door can be used for exterior entrances when the selected configuration is designed for the site's wind, structural and environmental conditions. The final door structure and wind resistance should be confirmed according to the opening size and local design requirements.
Yes. The door can be configured with insulated double-wall aluminum sections to reduce heat transfer through the closed entrance. Actual thermal performance depends on the panel construction, section joints and sealing system.
