Industrial Sectional Door is a high-performance overhead door system designed for factories, warehouses, logistics centers, workshops and other industrial facilities requiring reliable access, thermal insulation and efficient space utilization.
Manufactured by Huadun Door Industry, a professional Industrial Sectional Door manufacturer and OEM supplier, the door is constructed from 40 mm PU-insulated steel sandwich panels connected by heavy-duty hinges. The panels travel vertically along steel guide tracks before moving beneath the ceiling, maximizing usable space around the entrance without requiring an outward swing area.
Designed for demanding industrial environments, the Industrial Sectional Door combines torsion spring counterbalance technology, reinforced track systems, industrial electric operators and perimeter sealing to provide smooth operation, reliable thermal performance and long service life.
Huadun offers customized Industrial Sectional Doors, Insulated Sectional Doors and Industrial Overhead Door solutions with OEM manufacturing, engineering support and project-specific configurations to meet different building layouts, operating requirements and installation conditions.
Industrial buildings require entrance systems that provide more than basic access. An Industrial Sectional Door is designed to deliver reliable operation, effective thermal insulation and efficient use of available building space, making it ideal for factories, warehouses, logistics centers and commercial facilities.
The door consists of multiple insulated sectional panels connected by hinges and guided by steel tracks. During operation, the panels move vertically before following the overhead track beneath the roof structure. This space-saving design keeps the doorway and surrounding working area clear for vehicles, forklifts and personnel while maximizing usable floor space.
Each Industrial Sectional Door is manufactured using 40 mm steel-faced PU sandwich panels, providing an excellent balance of structural strength, thermal insulation and door weight. Flexible perimeter seals help reduce air leakage, dust infiltration and heat loss, improving indoor comfort and energy efficiency.
A torsion spring counterbalance system balances the weight of the door, reducing the operating load on the motor and ensuring smooth, stable movement throughout every opening and closing cycle. Vision windows and integrated pedestrian wicket doors can also be incorporated to improve visibility and provide convenient personnel access without opening the entire door.
As a professional Industrial Sectional Door manufacturer, Huadun provides customized Industrial Overhead Door solutions based on opening dimensions, headroom, track configuration, operating method and project requirements. OEM manufacturing, technical support and customized production are available for industrial and commercial projects worldwide.
Each Industrial Sectional Door is manufactured with 40 mm PU-insulated steel sandwich panels, providing an excellent balance of structural strength, thermal insulation and durability. The insulated panel design helps reduce heat transfer, improve energy efficiency and maintain stable indoor working conditions.
Unlike traditional hinged doors, the Sectional Door moves vertically before traveling beneath the ceiling. This overhead operating system maximizes usable floor space and keeps the entrance area clear for vehicles, forklifts and personnel.
A torsion spring counterbalance system balances the weight of the door, reducing the load on the operator and ensuring smooth, stable and controlled movement throughout every opening and closing cycle.
Flexible perimeter seals around the top, sides and bottom help reduce air leakage, dust infiltration and heat loss. Combined with PU-insulated panels, the Industrial Sectional Door provides reliable thermal insulation for industrial buildings.
Reinforced steel guide tracks, rollers and hinges ensure smooth door travel while maintaining stable panel alignment. The track system supports long-term reliability even under frequent industrial operation.
The Industrial Sectional Door can be equipped with an industrial electric operator supporting push-button stations, remote controls and customized access systems, providing convenient and efficient daily operation.
Vision windows improve natural lighting and visibility, while an integrated pedestrian wicket door allows personnel access without opening the complete Industrial Overhead Door, improving convenience and energy efficiency.
Huadun manufactures Industrial Sectional Doors in customized sizes, panel configurations, track systems, colors and control methods. OEM manufacturing and project-specific engineering support ensure every door matches the building's structural and operational requirements.

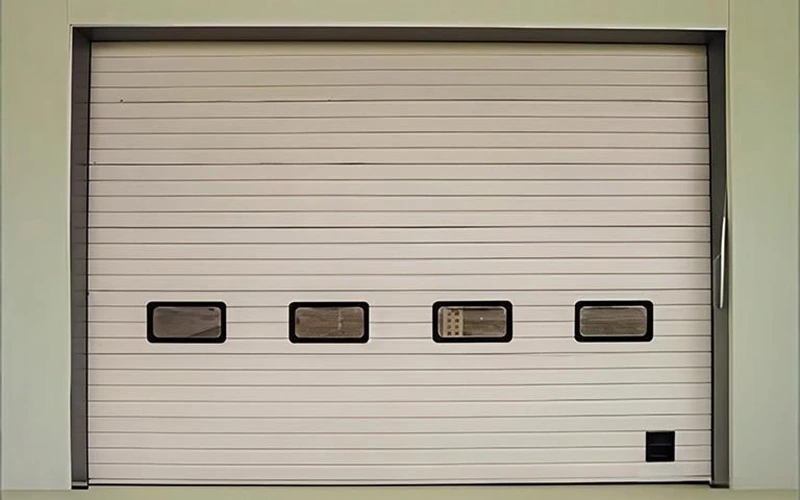

PU-insulated sectional door panels
Steel guide tracks
Heavy-duty hinges and rollers
Torsion spring counterbalance system
Lifting cables and cable drums
Industrial electric operator
Control unit and safety devices
Optional vision windows and wicket door

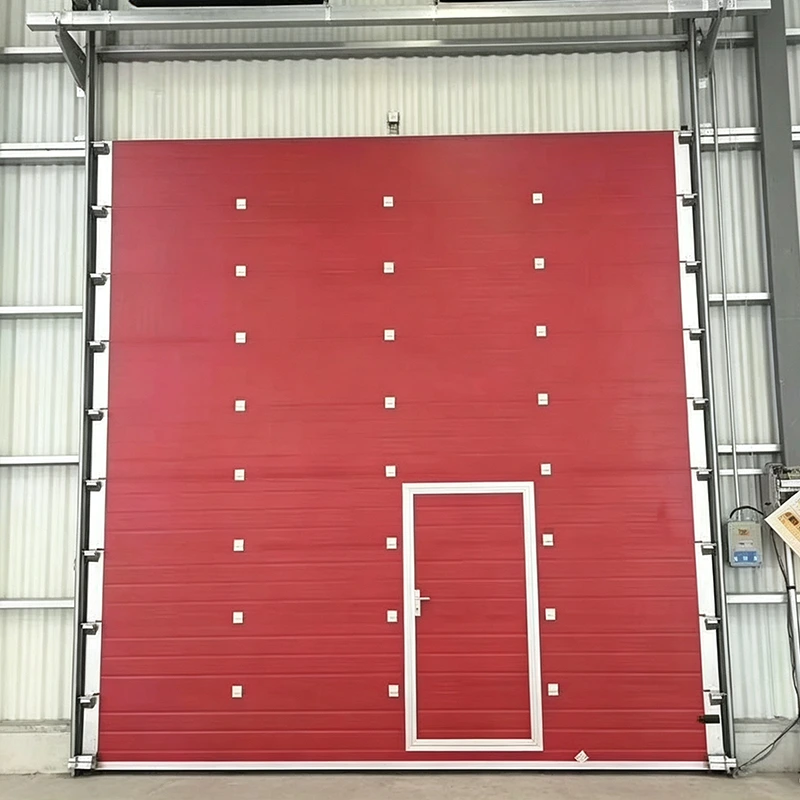

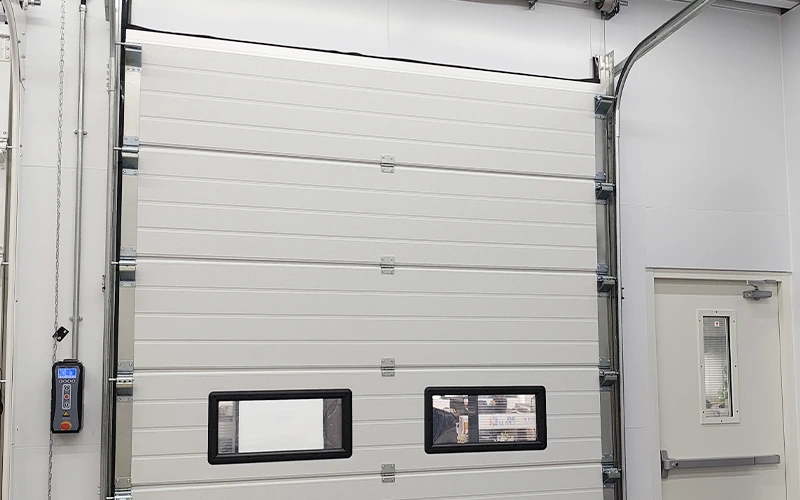

When an opening command is received, the Industrial Sectional Door is lifted by the electric operator while the torsion spring system counterbalances the door weight, reducing the operating load and ensuring smooth movement.
The rollers guide each panel vertically along the steel tracks before the door transitions to the horizontal overhead position beneath the ceiling. This overhead storage design maximizes usable floor space while keeping the entrance fully accessible.
When closing, the door follows the same track path in reverse. The torsion spring system continues balancing the door weight until the bottom panel reaches the floor, where perimeter sealing profiles create a secure, insulated and weather-resistant closure.
| Product Type | Specification |
| Product Name | Industrial Sectional Door |
| Common Technical Name | Industrial Overhead Sectional Door |
| Door Type | Insulated sectional overhead door |
| Door Panel | Steel PU sandwich panel |
| Panel Thickness | 40 mm |
| Insulation Material | Polyurethane foam |
| Opening Direction | Vertical upward |
| Storage Position | Overhead / beneath roof structure |
| Track System | Standard lift configuration according to installation conditions |
| Balance System | Torsion spring counterbalance |
| Guide System | Steel tracks with rollers |
| Operation | Motorized operation |
| Power Supply | According to project electrical requirements |
| Control | Push button / remote / customized control |
| Bottom Seal | Flexible sealing profile |
| Perimeter Seal | Side and top sealing profiles |
| Vision Window | Optional |
| Wicket Door | Optional |
| Surface Finish | Coated steel panel |
| Color | Customized |
| Size | Customized according to opening dimensions |
| Installation | Internal face installation according to project structure |
| Customization | OEM dimensions, panels, windows, wicket doors and controls |
Industrial Sectional Doors are designed for industrial and commercial buildings requiring insulated overhead access, reliable operation and efficient space utilization.
Industrial Facilities
Factories
Manufacturing plants
Workshops Workshops
Equipment entrances
Production buildings
Warehouses & Logistics Facilities
Warehouses
Distribution centers
Logistics buildings
Loading areas
Shipping and receiving areas
Commercial & Service Buildings
Maintenance facilities
Commercial storage buildings
Vehicle service areas
Retail back-of-house entrances
Temperature-Controlled Industrial Areas
Insulated workshops
Heated buildings
Air-conditioned industrial spaces
Areas requiring improved thermal efficiency

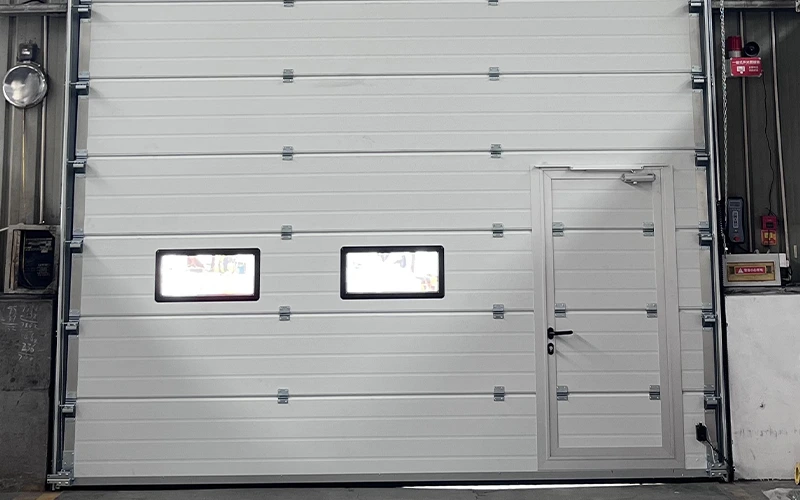

● Customized door dimensions
● 40 mm PU-insulated panels
● Vision windows
● Integrated pedestrian wicket door
● Industrial electric operator
● Remote or customized control systems
● Safety bottom edge and spring-break protection
● Customized track configurations
● OEM branding and project-specific manufacturing
An Industrial Sectional Door is an insulated overhead door made of multiple hinged panels that travel vertically before moving beneath the ceiling. It provides reliable access, thermal insulation and efficient use of building space for industrial and commercial facilities.
An Industrial Sectional Door uses insulated rigid panels connected by hinges, while a Roller Shutter Door uses narrow interlocking slats that roll around a barrel. Sectional doors generally provide better thermal insulation, sealing performance and structural rigidity.
PU-insulated sandwich panels combine high structural strength with excellent thermal insulation. They help reduce heat transfer, improve energy efficiency and maintain a more comfortable indoor working environment.
The torsion spring counterbalance system balances the weight of the Industrial Sectional Door, reducing the operating load on the motor and allowing the door to open and close smoothly with less mechanical stress.
Yes. Huadun manufactures Industrial Sectional Doors in customized sizes, panel configurations, colors, track systems, operating methods and control options. OEM manufacturing and engineering support are available for project-specific requirements.
They are widely used in factories, warehouses, logistics centers, workshops, loading docks, distribution centers and commercial facilities where insulated overhead access, reliable operation and efficient space utilization are required.
