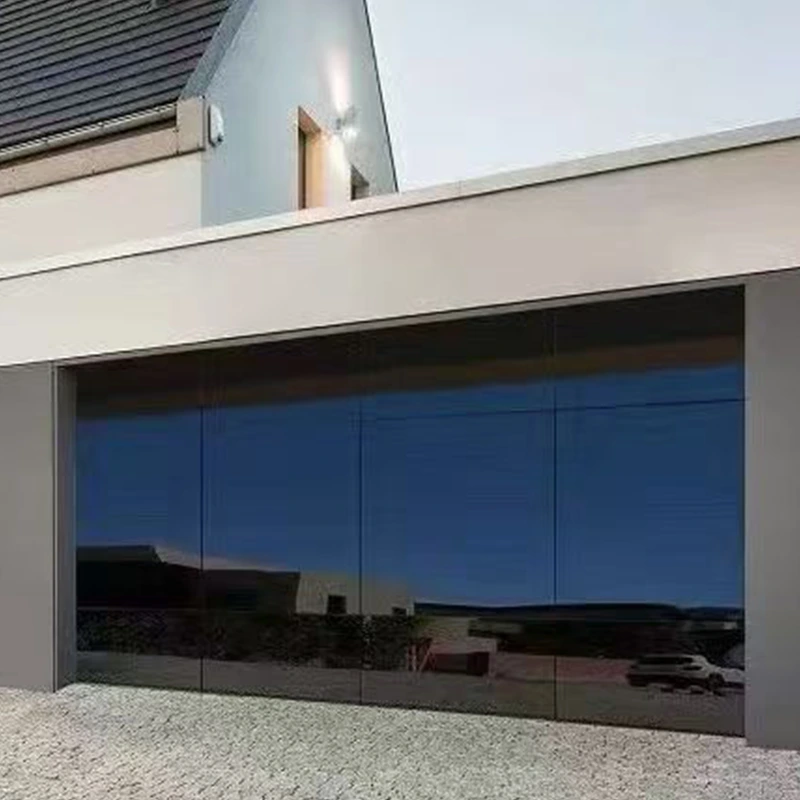

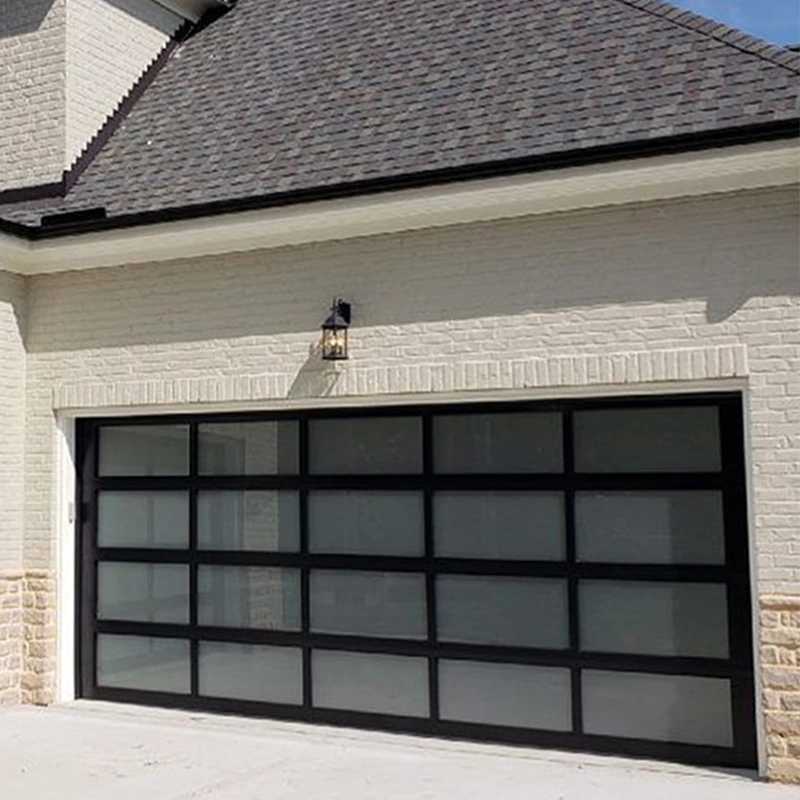

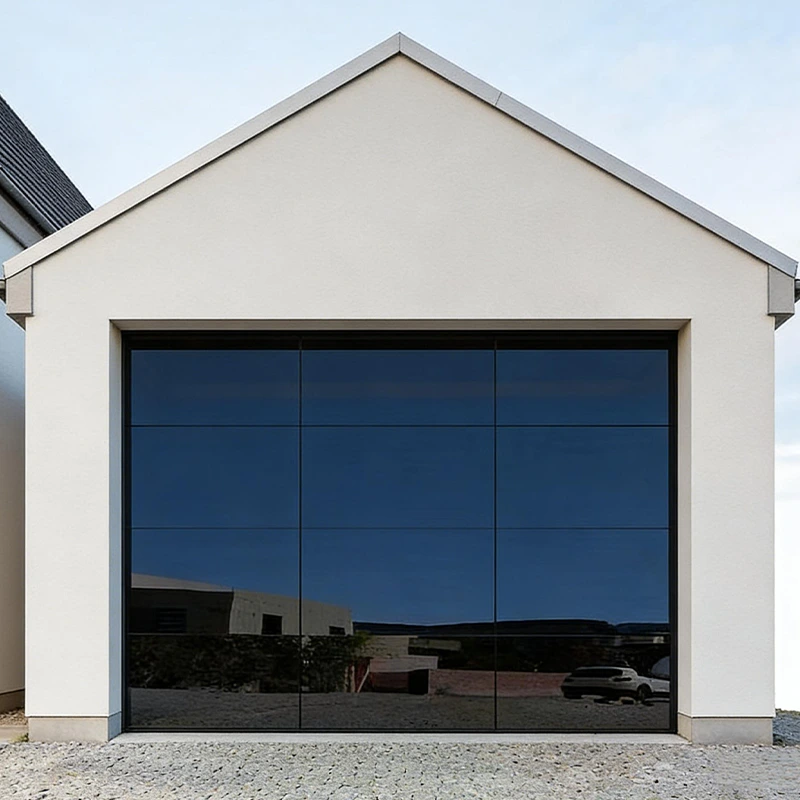

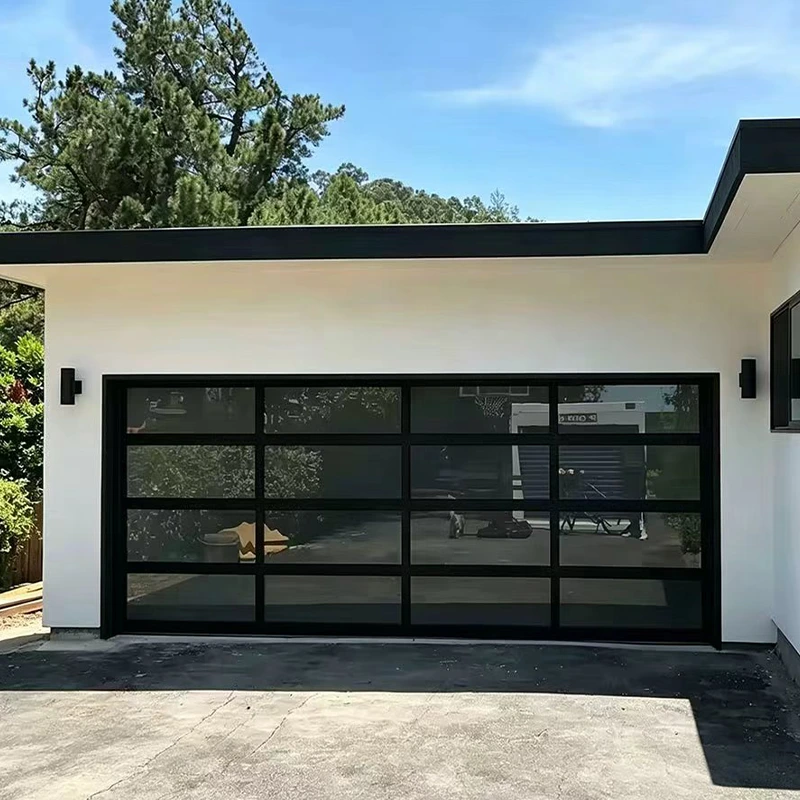

Glass Sectional Garage Door is a modern residential overhead door designed for villas, private garages and contemporary homes where natural light, architectural appearance and convenient vehicle access are important.
The door consists of horizontally connected aluminum-framed glass sections that move vertically along steel guide tracks before traveling beneath the garage ceiling. This sectional opening design eliminates the need for a large outward swing area and allows vehicles to approach the garage entrance more closely.
Compared with conventional solid-panel garage doors, the full-view glass construction provides greater transparency and natural daylight, making it particularly suitable for modern residential architecture.
Huadun Door Industry is a glass garage door manufacturer and OEM supplier, providing customized Glass Sectional Garage Doors, Full-View Glass Garage Doors and Aluminum Glass Garage Doors according to opening dimensions, glazing requirements, frame finishes and control systems.
Modern residential architecture increasingly emphasizes natural light, clean facade lines and visual connection between indoor and outdoor spaces. A solid garage door can interrupt this design, while a Glass Sectional Garage Door creates a more open and contemporary appearance.
The door consists of aluminum-framed glazed sections connected by hinges, with side rollers guiding each section through steel tracks. During opening, the sections move vertically upward and then follow curved tracks beneath the garage ceiling. This space-saving sectional design avoids the outward swing required by traditional hinged doors, making it suitable for attached and detached residential garages.
Aluminum Frame and Glass Construction
The aluminum frame combines structural strength, relatively low weight and corrosion resistance, making it suitable for supporting large glazed panels. Depending on the door size and glazing configuration, Huadun can use approximately 2.3–2.4 mm aluminum profile wall thickness.
The complete door system includes aluminum frames, glass panels, hinges, rollers, guide tracks, a counterbalance system and perimeter seals. The frame and structural configuration are selected according to the door dimensions, glazing weight and project requirements.
Glass Options

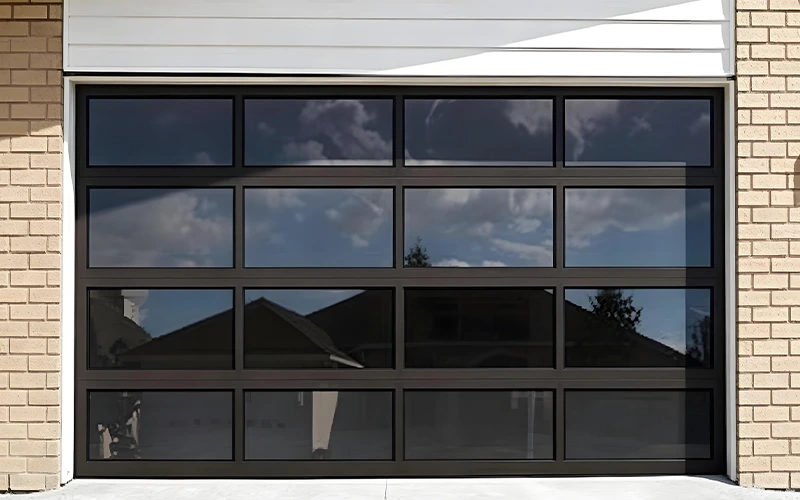

Glass can be selected according to requirements for daylight, privacy and thermal performance. Available options include:
● Clear glass for maximum visibility and natural light
● Frosted or obscure glass for increased privacy
● Tinted glass for reduced visibility and a distinctive appearance
● Insulated glass for improved thermal separation
● Customized glazing for project-specific requirements
For projects requiring improved thermal performance, Huadun can configure the door with 5+6A+5 insulated glass units (IGU). The double-glazed structure provides an insulating air space between the glass panes while maintaining the full-view appearance.
The thermal performance of a complete Glass Garage Door depends on the glazing, aluminum frame, section joints and perimeter seals. The final configuration should therefore be selected according to the building design and project conditions.
Full-View Architectural Design
A major advantage of a Full-View Glass Garage Door is its combination of vehicle access, natural light and contemporary architectural design.
Large glazed sections allow daylight to enter the garage while the door is closed, creating a brighter and more visually connected space. Frosted, tinted or obscure glass can provide additional privacy, while customized aluminum colors and finishes can coordinate with window frames, exterior cladding and other facade elements.
Balanced and Automatic Operation
The door uses a spring counterbalance system to offset the weight of the aluminum-and-glass door leaf. The springs, tracks and opener are selected according to the actual door dimensions and glazing weight.
For convenient everyday operation, the door can be equipped with a residential garage door opener supporting remote control, wall-mounted control, wireless access or compatible smart-control functions.
Huadun manufactures each Aluminum Glass Garage Door according to the garage opening, available headroom, glazing requirements and architectural design, providing OEM production and customized solutions for residential projects.
Large glazed sections provide natural daylight and a contemporary appearance, making the door particularly suitable for modern villas, private homes and architectural garage projects.
The door uses aluminum profiles to support the glazed sections, providing a combination of strength, corrosion resistance and relatively low moving weight.
Profile dimensions and reinforcement can be customized according to door size, glass weight and project requirements.
The Glass Sectional Garage Door can be configured with clear, frosted, tinted, obscure or insulated glass.
The selected glazing can be matched to the project's requirements for privacy, daylight and thermal performance.
For projects requiring improved thermal separation, 5+6A+5 IGU can be specified.
The double-glazed structure provides an insulating air space between the panes while preserving the full-view appearance.
The door moves vertically upward and then beneath the garage ceiling, eliminating the outward swing of a conventional hinged door.
This allows vehicles to approach the entrance more closely and makes efficient use of the available driveway space.
The large glass surface allows natural light into the garage while the door remains closed.
This can be useful for garages that are also used as workshops, hobby areas, studios or multi-purpose residential spaces.
Huadun can customize:
● Aluminum frame color and finish
● Glass transparency and tint
● Glass section layout
● Door dimensions
● Window and glazing arrangement
This allows the door to coordinate with the building facade and other architectural elements.
A spring counterbalance system helps offset the weight of the door leaf and supports controlled opening and closing.
Spring specifications should be calculated according to the actual door dimensions and glazing weight.
The door can be equipped with a residential garage door opener for convenient everyday operation.
Available control options can include:
● Remote control
● Wall-mounted switch
● Wireless access control
● Compatible smart-control options
● Manual emergency release

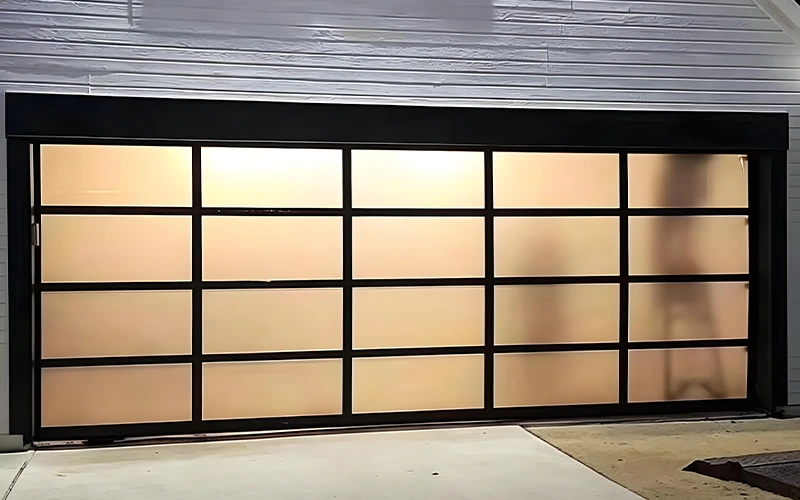

● Aluminum-framed glass sections
● Glass panels
● Section hinges
● Side rollers
● Steel guide tracks
● Counterbalance spring system
● Lifting cables and drums
● Residential garage door opener
● Bottom sealing profile
● Safety devices

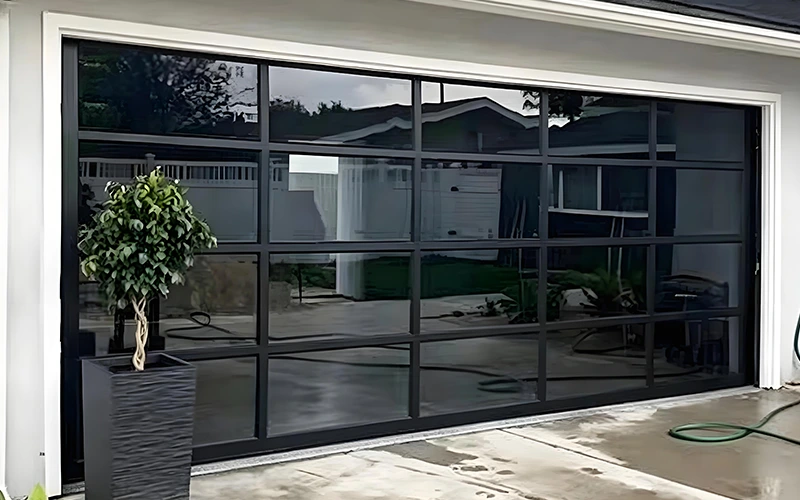

● The garage door opener starts the lifting movement.
● The counterbalance system helps offset the door weight.
● Rollers guide the glass sections vertically upward.
● The sections pass through the curved track.
● The complete door moves beneath the garage ceiling.
● The garage opening becomes clear for vehicle access.

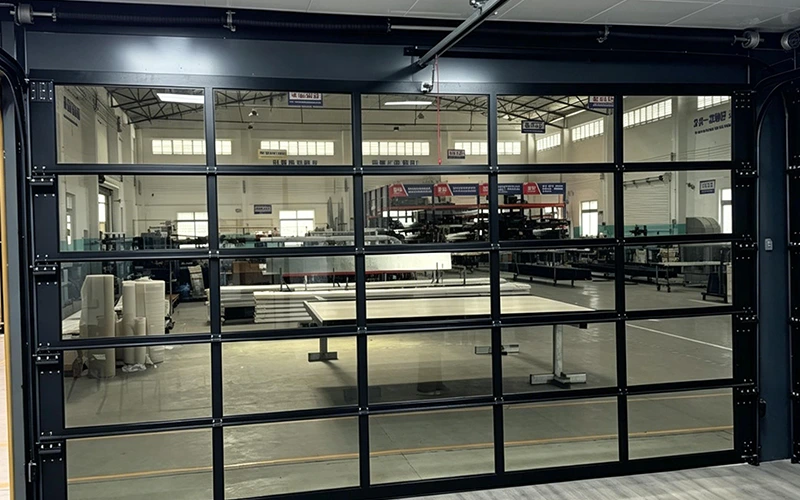

● The opener moves the door from its overhead position.
● The glazed sections travel through the curved tracks.
● The sections move vertically downward.
● The counterbalance system maintains controlled movement.
● The bottom section reaches the floor.
● Perimeter seals contact the garage opening.
● The garage entrance returns to its closed position.
● Although its appearance differs from a conventional solid-panel garage door, the mechanical principle remains a sectional overhead door system.
| Product Type | Specification |
| Product Name | Glass Sectional Garage Door |
| Common Technical Name | Full-View Glass Garage Door / Aluminum Glass Garage Door |
| Application | Residential garage / villa / private house |
| Door Type | Aluminum framed sectional overhead door |
| Frame Material | Aluminum alloy |
| Aluminum Profile Wall Thickness | Approx. 2.3–2.4 mm according to configuration |
| Glazing | Glass panels |
| Insulated Glass Option | 5+6A+5 IGU |
| Glass Options | Clear / Frosted / Tinted / Obscure / Customized |
| Opening Direction | Vertical upward |
| Storage Position | Beneath garage ceiling |
| Guide System | Steel tracks with rollers |
| Balance System | Spring counterbalance |
| Operation | Manual / Motorized |
| Operator | Residential garage door opener |
| Control | Remote / Wall switch / Customized access control |
| Bottom Seal | Flexible weather seal |
| Perimeter Seal | Side and top sealing profiles |
| Frame Finish | Customized |
| Color | Customized |
| Size | Customized according to garage opening |
| Installation | According to opening structure and available headroom |
| Customization | OEM dimensions, glass, frame finishes and controls |
Note: Final door dimensions, glass thickness, frame structure, spring configuration, wind resistance and opener capacity should be determined according to the actual door size, glazing weight, local design loads and project conditions.
Glass Sectional Garage Doors are primarily designed for residential and architectural projects where transparency, natural light and contemporary appearance are important.
Residential Garages
Private garages
Attached garages
Detached garages
Single-car garages
Double-car garages
Villas & Premium Residences
Modern villas
Luxury residences
Townhouses
Custom-designed homes
Residential compounds
Architectural Living Spaces
Garage conversions
Home studios
Hobby rooms
Indoor-outdoor living spaces
Multi-purpose residential rooms
The full-view glass construction is particularly suitable for contemporary homes where the garage entrance forms an important part of the building facade.
Light Commercial Architectural Applications
Depending on the structural design, similar aluminum-and-glass sectional systems can also be used for:
Restaurants
Cafés
Showrooms
Studios
Boutique commercial spaces
For large industrial openings or high-cycle commercial traffic, an industrial sectional door should be selected according to the required structural and operating conditions.
● Customized opening dimensions
● Clear glass
● Frosted glass
● Tinted glass
● Obscure / privacy glass
● 5+6A+5 insulated glass
● Customized aluminum frame color
● Anodized-style finish
● Powder-coated finish
● Different glass section layouts
● Residential electric opener
● Remote controls
● Wall-mounted control
● Compatible smart-access options
● Safety photo sensors
● Manual emergency release
● Customized track configuration
● Low-headroom arrangement where applicable
● OEM branding and project-specific production
The final glass type, frame structure, safety configuration and opening dimensions should be confirmed according to the project drawings and destination-market requirements.
A Glass Sectional Garage Door is a residential overhead door made from horizontally connected aluminum-framed glass sections.
The sections move vertically upward and then travel beneath the garage ceiling when the door opens.
A standard sectional garage door typically uses solid insulated panels, while a glass sectional model uses large glazed sections supported by aluminum frames.
The glass version focuses more on natural light, transparency and contemporary architectural appearance.
Yes. Frosted, tinted and obscure glass can reduce direct visibility into the garage while maintaining the modern appearance of the door.
Yes. Huadun can configure the door with 5+6A+5 insulated glass units for projects requiring improved thermal separation.
However, the overall thermal performance also depends on the frame, joints and sealing system.
Yes. Frame colors and surface finishes can be customized according to the architectural facade and project requirements.
Yes. The door can be equipped with a residential garage door opener and compatible remote, wall-mounted or smart-access controls.
The basic sectional operating principle remains the same, but glass weight, door dimensions, wind loads and frame structure must be considered when selecting the profiles, springs, tracks and opener.
Yes. Huadun can customize the door dimensions, glass type, section layout, aluminum frame finish and control configuration according to the project requirements.
