Transparent Roll Up Door is a commercial rolling shutter designed to combine storefront security with clear visibility. It is widely suited to shopping malls, retail stores, showrooms, airports and other commercial spaces where products and interior displays need to remain visible after closing.
The curtain is made from transparent polycarbonate elements connected with stainless steel or aluminum components. It travels vertically through side guide rails and rolls around a shaft above the opening.
Unlike solid steel or aluminum roller shutters, a transparent polycarbonate shutter provides a physical barrier without completely blocking the view into the store. This makes it particularly suitable for retail environments where visual merchandising remains important outside business hours.
Huadun Door Industry manufactures customized Transparent Roll Up Doors for commercial projects, offering different curtain structures, operating systems, dimensions and installation configurations.
A Transparent Roll Up Door, also known as a Polycarbonate Rolling Shutter Door, Transparent Roller Shutter or Clear Roll Up Door, is a rolling closure that provides security while maintaining visibility through the opening.
The curtain typically consists of clear polycarbonate links or slats connected by stainless steel tubes or aluminum profiles. The exact construction depends on the required door size, operating conditions and architectural design.
When the door opens, the curtain moves upward through the side guides and coils around the shaft above the opening. When closed, it forms a continuous transparent barrier across the entrance.
The main advantage is the combination of visibility and physical separation. Retail displays, illuminated interiors and merchandise remain visible from outside even when the store is closed.
Polycarbonate is well suited to this type of moving shutter because it offers high transparency, relatively low weight and good impact resistance compared with conventional glass.
Depending on the opening size and operating frequency, the door can be configured for manual or motorized operation. Motorized versions can use wall switches, remote controls, key switches or compatible access-control systems.
For larger commercial openings, the curtain, connecting components, guide rails, shaft and drive system should be selected as a complete system based on the finished dimensions and curtain weight.
The primary advantage of the Transparent Roll Up Door is its ability to maintain visual access through the opening while the shutter remains closed.
This allows:
● Merchandise to remain visible
● Interior displays to remain illuminated and visible
● Security personnel to see through the opening
● Commercial spaces to maintain an open visual appearance
Transparent polycarbonate rolling shutters are specifically used where storefront visibility needs to be maintained after closing.
The transparent curtain uses polycarbonate components rather than ordinary glass.
Polycarbonate is suitable for moving shutter applications because it combines:
● Transparency
● Relatively low weight
● High impact resistance
● Flexible manufacturing possibilities
● Suitability for rolling curtain structures
The final polycarbonate thickness and profile should be selected according to the actual door size and structural design.
A conventional solid shutter protects a storefront by completely covering it.
A Transparent Roll Up Door uses a different approach.
When closed, the curtain creates a physical barrier while allowing products and interior spaces to remain visible.
This combination of visibility and security is one of the principal reasons transparent polycarbonate shutters are used for retail and showroom applications.
The complete transparent curtain coils around a shaft installed above the opening.
This compact structure avoids:
● Swinging door leaves
● Large sliding-door storage areas
● Long sectional tracks beneath the ceiling
The system is therefore suitable for commercial entrances where available installation space must be used efficiently.
The transparent surface produces a lighter and more open appearance than a traditional steel security shutter.
This makes the product particularly suitable for modern commercial architecture where the entrance remains an important part of the visual presentation even when the premises are closed.
Typical projects include:
● Shopping malls
● Luxury retail stores
● Showrooms
● Airports
● Commercial galleries
Depending on the selected curtain design, transparent polycarbonate elements can be connected by:
● Stainless steel tubes
● Aluminum connecting profiles
● Engineered interlocking elements
The connection system helps form a continuous curtain while allowing the shutter to coil around the upper barrel.
Polycarbonate-and-metal combination structures are commonly used in transparent rolling shutter systems.
The transparent curtain travels inside guide rails installed on both sides of the opening.
The guide rails help:
● Maintain curtain alignment
● Control vertical movement
● Support the curtain when closed
● Reduce lateral movement
● Improve overall system stability
Guide rail dimensions should be selected according to the actual curtain construction and door size.
Depending on the opening dimensions and operating requirements, the Transparent Roll Up Door can be configured with:
● Manual operation
● Electric motor
● Push-button control
● Remote control
● Key switch
● Emergency manual operation
Both manual and motorized operating configurations are used for commercial transparent polycarbonate rolling shutters.
Transparent rolling shutters can be manufactured for customized commercial openings rather than being limited to standard residential door dimensions.
For wider openings, the polycarbonate profile, metal connecting system, barrel, guides and motor must be engineered according to the finished curtain dimensions and weight.
Huadun can manufacture the door according to actual architectural drawings and opening dimensions.
Huadun can customize the Transparent Roll Up Door according to:
● Opening width
● Opening height
● Polycarbonate curtain design
● Polycarbonate thickness
● Connecting structure
● Side guide configuration
● Bottom rail
● Roller shaft
● Motor system
● Control method
● Installation position
● Architectural requirements
The curtain and operating system should be selected as one complete engineered rolling shutter system.

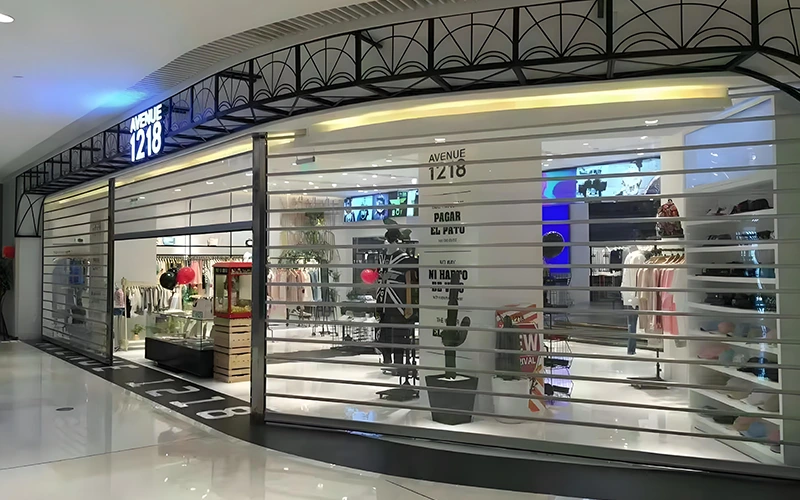

● Transparent polycarbonate curtain elements
● Stainless steel or aluminum connecting components
● Roller shaft / barrel
● Side guide rails
● Bottom rail
● Supporting brackets
● Optional shutter hood
● Manual or electric operating system
● Control accessories

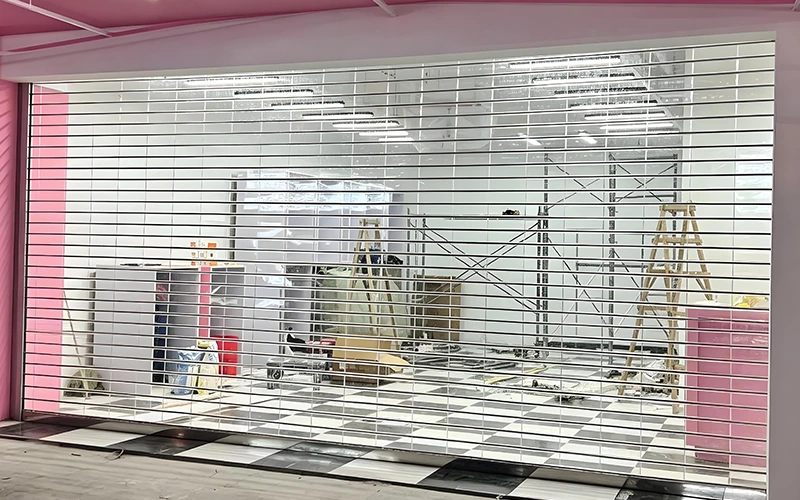

● The user activates the manual or motorized operating system.
● The shaft begins rotating.
● The transparent curtain moves upward through the side guides.
● The connected polycarbonate elements coil around the shaft.
● The curtain is stored above the opening.
● The entrance becomes fully accessible.

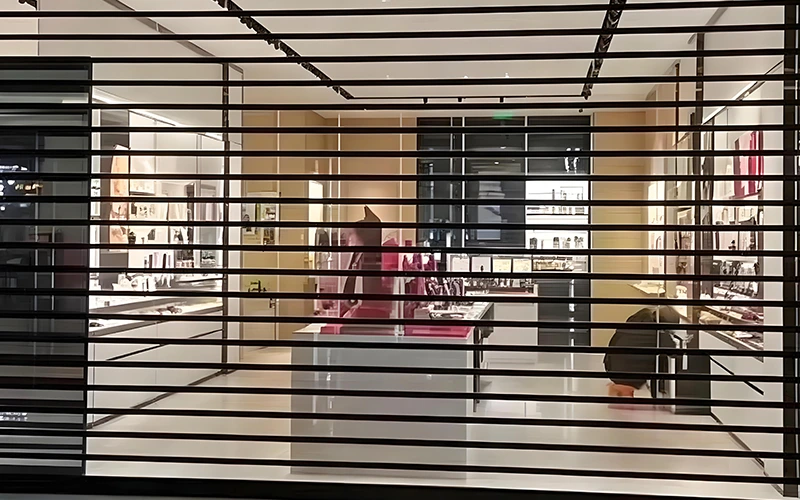

● The shaft rotates in the closing direction.
● The curtain unwinds and travels downward through the guide rails.
● The guides maintain curtain alignment.
● The bottom rail reaches the closed position.
● The entrance is secured while visibility through the transparent curtain is maintained.
| Product Type | Specification |
| Product Name | Transparent Roll Up Door |
| Common Technical Name | Polycarbonate Rolling Shutter Door / Transparent Roller Shutter |
| Door Type | Transparent upward-coiling shutter |
| Curtain Material | Polycarbonate |
| Curtain Structure | Transparent links / slats according to configuration |
| Connecting Material | Stainless steel / Aluminum according to configuration |
| Opening Direction | Vertical upward |
| Storage Method | Coil around upper barrel |
| Guide System | Side guide rails |
| Bottom Rail | Reinforced bottom profile |
| Operation | Manual / Electric |
| Motor | Selected according to curtain dimensions and weight |
| Control | Push button / Remote / Key switch / Customized |
| Manual Override | Optional |
| Hood | Optional according to installation design |
| Transparency | According to selected polycarbonate curtain configuration |
| Curtain Finish | Clear / Frosted option according to configuration |
| Size | Customized according to opening dimensions |
| Installation | Face-mounted / Between-opening according to site conditions |
| Customization | OEM dimensions, curtain design, guides, motors and controls |
Note: Maximum door size, polycarbonate thickness, connecting structure, shaft specification and motor capacity should be determined from the actual project requirements. Specific impact, fire, wind or security ratings should only be stated when supported by testing and certification for the complete door system.
Transparent Roll Up Doors are primarily used in commercial and public spaces where security is required without completely blocking visibility through the entrance.
Shopping Malls
Transparent Roll Up Doors are particularly suitable for individual stores and shopfronts inside shopping malls.
They allow retailers to secure the entrance after business hours while keeping merchandise, lighting and visual displays visible from the mall corridor.
Retail Stores & Boutiques
Suitable for:
Fashion stores
Jewelry retail areas
Electronics stores
Cosmetics shops
Luxury retail stores
Brand showrooms
The clear curtain helps maintain the visual connection between the storefront and surrounding commercial space.
Showrooms
The system can be used for:
Automotive showrooms
Furniture showrooms
Product exhibition spaces
Interior display areas
Commercial galleries
Displayed products remain visible even when the entrance is closed.
Airports & Transportation Buildings
Potential applications include:
Airport retail stores
Terminal commercial areas
Duty-free stores
Station retail units
Public commercial passages
The transparent shutter provides separation without creating an opaque visual barrier.
Commercial Buildings
Other applications include:
Hotel retail areas
Restaurants
Reception areas
Exhibition centers
Commercial service counters
It is especially suitable where visibility, architectural appearance and physical separation are required together.

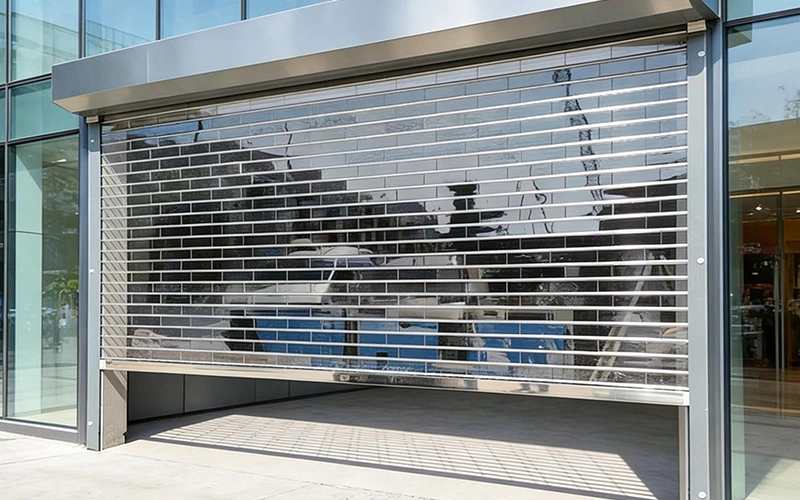

● Customized opening dimensions
● Transparent polycarbonate curtain
● Different polycarbonate profiles
● Clear curtain configuration
● Frosted curtain elements where applicable
● Stainless steel connecting tubes
● Aluminum connecting profiles
● Customized side guide rails
● Reinforced bottom rail
● Manual operation
● Electric motor
● Push-button control
● Remote control
● Key switch
● Emergency manual operation
● Safety photocells for suitable motorized configurations
● Protective shutter hood
● Customized metal component finishes
● OEM branding
● Project-specific manufacturing
The final curtain, connection system, shaft, guide rails and drive configuration should be selected according to opening dimensions, operating frequency and required performance.
It is a rolling shutter made primarily from transparent polycarbonate curtain elements. The curtain coils around an overhead shaft while maintaining visibility through the entrance when closed.
A Polycarbonate Rolling Shutter Door is a transparent roller shutter that uses polycarbonate links or slats as the curtain material. It is commonly used where visibility and security are both required.
A Steel Roll Up Door uses opaque steel slats and focuses on strength, durability and physical security. A transparent polycarbonate shutter combines physical separation with continuous visibility, making it more suitable for retail and display environments.
No. Polycarbonate is a transparent engineering plastic rather than glass. It offers good optical clarity with lower weight and high impact resistance, making it suitable for moving shutter applications.
Yes. An electric motor can be used for automatic opening and closing. Motor capacity should be selected according to the curtain dimensions, weight and operating frequency.
Yes.Huadun manufactures the shutter according to the actual opening dimensions and selects the curtain, connecting components, shaft, guides and motor accordingly.
Yes. Shopping malls are one of the main applications because retailers can secure the storefront while keeping merchandise and displays visible after closing.
Outdoor use depends on the complete system design, including polycarbonate construction, guide rails, wind exposure and installation conditions. The configuration should be confirmed for the specific project.
Not automatically. A standard polycarbonate rolling shutter should be considered non-fire-rated unless the complete door assembly has applicable fire-resistance testing and certification.
Not normally. A Transparent Roll Up Door is primarily designed for visibility, security and compact storage, while a High Speed Door is specifically engineered for rapid, frequent industrial operation.
