High Speed Door is a rapid-operating industrial door designed for factories, warehouses, logistics centers, workshops and controlled production areas where frequent traffic, efficient access and environmental separation are required.
Manufactured by Huadun Door Industry, a high speed door manufacturer and OEM supplier, the system combines a flexible PVC curtain, compact roll-up structure, side guide rails, high-speed drive unit and automatic control system.
Unlike conventional roller shutters or sectional doors, a PVC High Speed Door is designed to open and close quickly, reducing the time an entrance remains open during daily traffic. This can help improve material flow while limiting unnecessary air exchange, dust movement and temperature loss between adjacent areas.
The lightweight flexible curtain also allows for a compact installation, making the High Speed Door suitable for internal industrial passages, warehouses, production areas and other high-traffic openings.
Huadun provides customized High Speed Doors and PVC Rapid Roll Doors according to opening dimensions, traffic frequency, operating conditions and control requirements.
Industrial facilities often require doors to cycle repeatedly throughout the day. A conventional industrial door may remain open longer than necessary, affecting traffic flow and allowing conditioned air, dust or insects to move between working areas.
A High Speed Door, also known as a PVC High Speed Door, Rapid Roll Door or High Speed Roll-Up Door, uses a flexible PVC-coated curtain that rolls around an upper shaft.
When an opening signal is received, the drive system rapidly raises the curtain through the side guides. After the programmed delay, the door automatically closes to restore separation between the two areas.
The flexible curtain has a relatively low moving weight, allowing the door to operate at higher speeds than conventional rigid doors. A transparent PVC vision panel can also be incorporated to improve visibility between operators, forklifts and personnel on opposite sides of the opening.
Depending on the application, activation methods can include radar sensors, vehicle loop detectors, push buttons, pull cords, remote controls and access-control signals.
Safety equipment such as photoelectric sensors, safety light curtains and bottom safety edges can be configured to help detect obstacles during closing.
The product should also be distinguished from a Hard Fast Door. A standard High Speed Door uses a flexible PVC curtain and is mainly intended for rapid traffic and environmental separation, while a Hard Fast Door uses rigid aluminum or insulated sections where greater structural strength, security or wind resistance is required.
Huadun manufactures each High Speed Door according to the actual opening size, traffic pattern, installation environment and required control configuration.
Rapid automatic operation reduces waiting time at busy industrial entrances and minimizes the period during which the doorway remains open.
This is especially useful for forklift routes, production lines, warehouses and internal material-transfer passages.
The door uses a lightweight PVC-coated flexible curtain rather than heavy rigid panels.
This construction supports rapid movement while keeping the roll-up structure compact. Different curtain colors and transparent vision sections can be selected according to the application.
Because the door opens quickly and closes automatically, it can help reduce unnecessary exchange between adjacent working areas.
Depending on the building and application, this can help limit:
● Air drafts
● Conditioned air loss
● Dust movement
● Insect entry
● Temperature exchange
The actual environmental performance depends on the complete door and building configuration.
A High Speed Door is designed for repeated daily operation in industrial environments.
The motor, controller, curtain and guide system should be selected according to the expected traffic frequency and opening dimensions.
The door can be configured with different activation systems, including:
● Radar sensor
● Vehicle loop detector
● Push button
● Pull cord
● Remote control
● Access-control signal
● Production-line interface
Automatic activation allows forklifts and personnel to pass through without manually operating the door.
Depending on the configuration, the system can include:
● Photoelectric safety sensors
● Safety light curtain
● Bottom safety edge
● Obstacle detection
● Automatic reversing
● Emergency stop
The safety configuration should be selected according to the door design, operating speed and applicable project requirements.

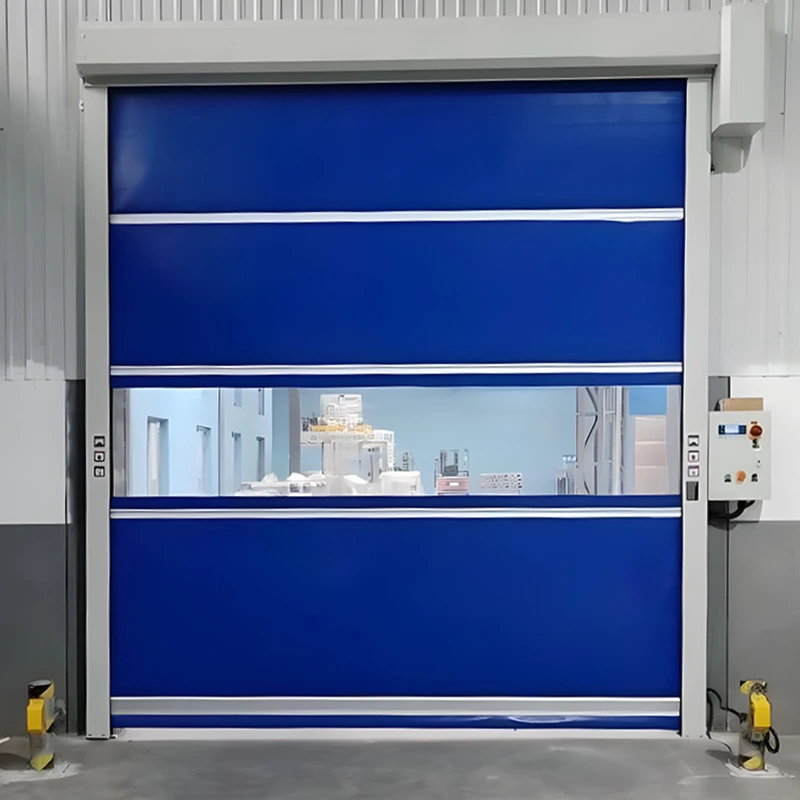

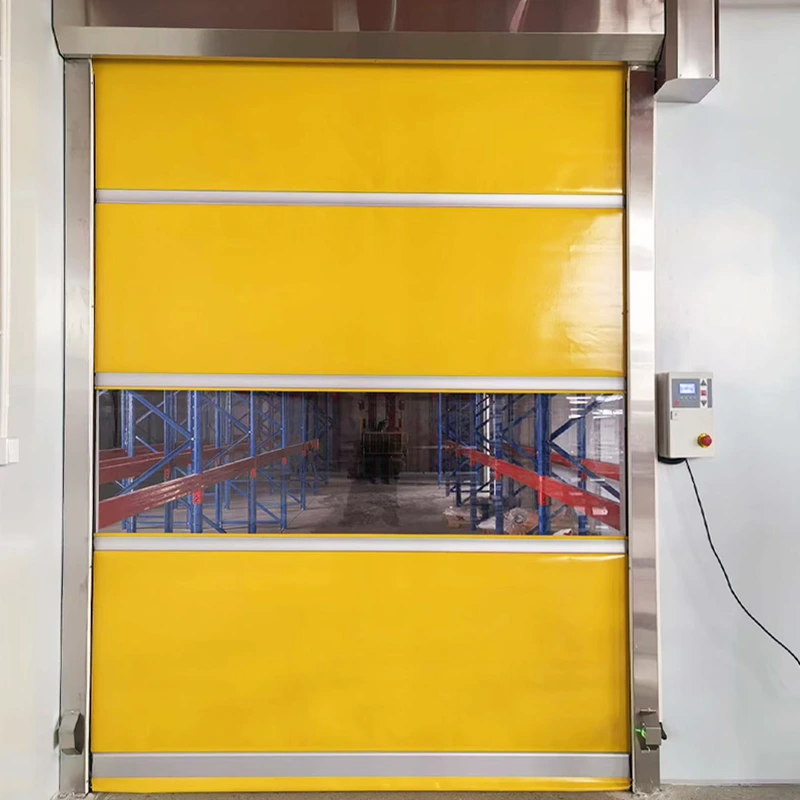

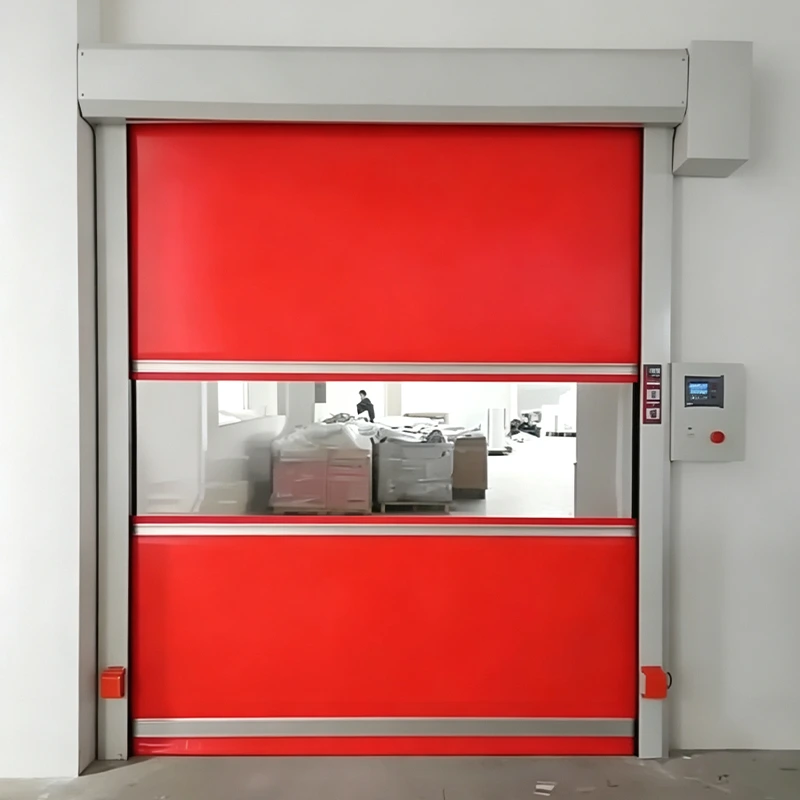

A transparent PVC vision section can be integrated into the curtain to improve visibility through the doorway.
This can help forklift operators and personnel identify approaching traffic before entering the opening.
The flexible curtain rolls around a shaft positioned above the opening.
Compared with sectional doors that require horizontal tracks beneath the ceiling, the compact roll-up structure can preserve more overhead space for lighting, ventilation, piping and other building services.
Huadun can configure the High Speed Door according to:
● Opening width and height
● Curtain specification
● Curtain color
● Vision panel
● Operating speed
● Traffic frequency
● Motor and controller
● Safety devices
● Activation method
● Installation environment
The complete configuration is selected according to the actual project rather than based on one universal specification.

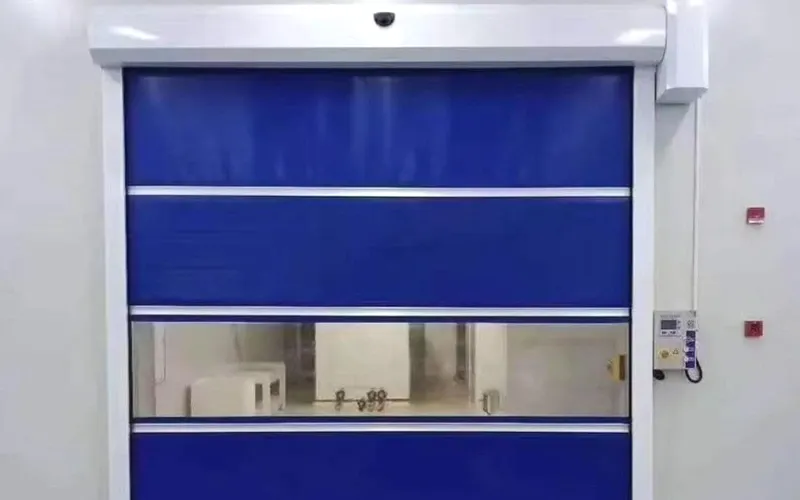

A High Speed Door generally consists of:
1.Flexible PVC curtain
2.Upper roller / shaft
3.Header structure
4.Side guide rails
5.High-speed drive motor
6.Control panel
7.Bottom safety edge
8.Safety sensors
9.Activation devices
10.Optional vision panel

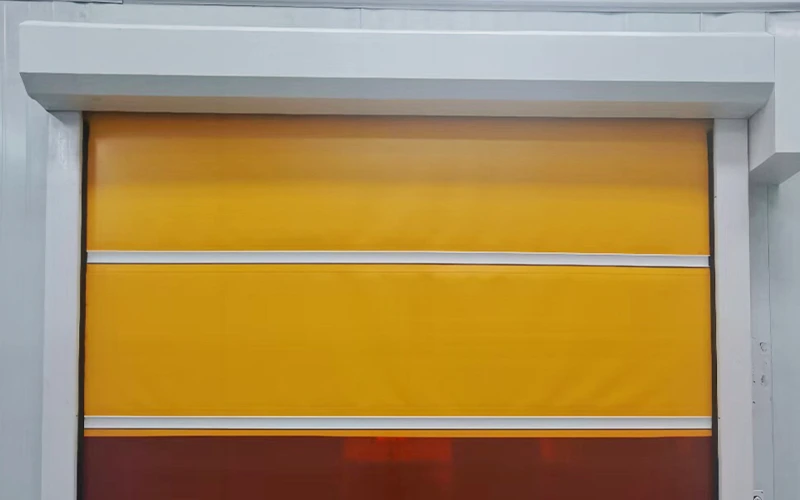

1. The radar sensor, loop detector, push button or other device sends an opening signal.
2. The controller activates the drive motor.
3. The PVC curtain moves rapidly upward through the side guides.
4. The curtain rolls around the upper shaft.
5. The door reaches its programmed open position.
6. Personnel, forklifts or materials pass through.

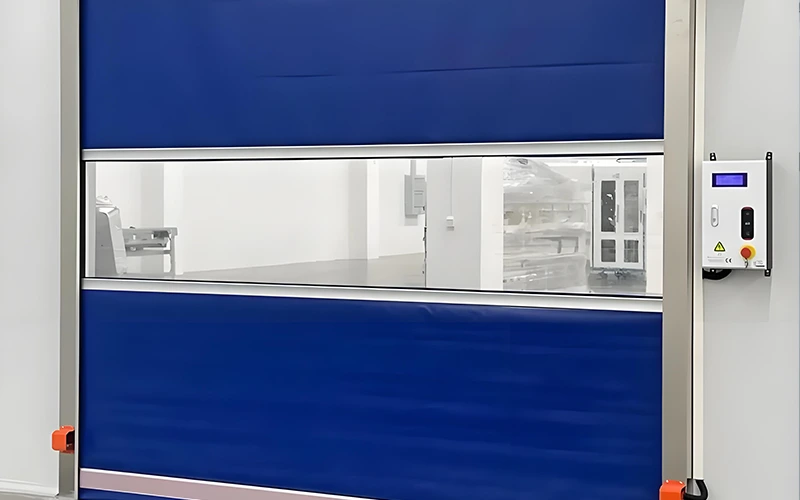

1.After the programmed delay, the controller starts the closing cycle.
2.The curtain moves downward through the guide rails.
3.Safety sensors monitor the doorway.
4.If an obstruction is detected, the system can stop or reverse according to the selected configuration.
5.The curtain reaches the closed position and restores separation between the working areas.
| Product Type | Specification |
| Product Name | High Speed Door |
| Common Technical Name | PVC High Speed Door / Rapid Roll Door / High Speed Roll-Up Door |
| Door Type | Flexible high-speed roll-up door |
| Curtain Material | PVC-coated industrial fabric |
| Opening Direction | Vertical upward |
| Storage Method | Roller / shaft winding |
| Operation | Motorized automatic |
| Drive System | High-speed industrial motor |
| Control System | Intelligent door controller |
| Opening Speed | Configured according to door size and selected drive system |
| Closing Speed | Configured according to safety and project requirements |
| Guide System | Vertical side guide rails |
| Vision Panel | Transparent PVC window optional |
| Activation | Radar / Loop detector / Remote / Push button / Customized |
| Safety Sensors | Photocell / Light curtain / Safety edge optional |
| Automatic Closing | Adjustable time-delay closing |
| Curtain Color | Customized |
| Installation | Interior / sheltered industrial opening according to selected configuration |
| Size | Customized according to opening dimensions |
| Power Supply | According to project electrical requirements |
| Customization | OEM sizes, curtains, controls, sensors and activation methods |
Note: Operating speed, maximum dimensions and cycle capability depend on the complete door configuration. Huadun should specify final performance values according to the selected curtain, motor, controller and actual opening size rather than applying one universal speed to all models.
High Speed Doors are mainly used where rapid, repeated access and environmental separation are required.
Factories & Manufacturing Facilities
Production workshops
Assembly areas
Machinery manufacturing
Electronics production
Component manufacturing
Internal production passages
Material-transfer areas
Fast automatic operation helps maintain efficient movement between different production zones.
Warehouses & Logistics
Warehouses
Logistics centers
Distribution facilities
Forklift passages
Picking areas
Material transfer zones
Rapid opening and automatic closing can reduce waiting time at busy internal logistics entrances.
Controlled Production Areas
High Speed Doors can be used for:
Clean workshops
Electronics production
Food processing
Packaging facilities
Dust-controlled workshops
Temperature-separated areas
For specialized cleanroom, cold-storage or hygienic applications, the door configuration should be selected according to the required environmental standard.
Commercial & Service Areas
Applications can also include:
Supermarket back-of-house areas
Service passages
Industrial kitchens
Maintenance facilities
Internal vehicle passages
Environmental Separation
The door can help separate areas with different:
Temperature
Dust separation
Air-conditioned workshops
Different production zones
Traffic patterns
For exposed exterior openings with significant wind loads, a rigid Hard Fast Door or reinforced high-speed door may be more appropriate depending on the site conditions.
● Customized door dimensions
● Different PVC curtain colors
● Transparent vision window
● Full transparent curtain option where applicable
● Radar motion sensor
● Vehicle loop detector
● Remote control
● Push button control
● Pull-cord switch
● Access-control interface
● Production-line linkage
● Photoelectric safety sensors
● Safety light curtain
● Bottom safety edge
● Automatic reversing function
● Adjustable automatic closing delay
● Warning light
● Emergency stop
● Manual emergency release
● Customized control logic
● OEM branding and project-specific manufacturing
The final drive, safety and activation configuration should be selected according to traffic frequency, opening dimensions and operating environment.
A High Speed Door is an automatic industrial door designed for rapid opening and closing. The PVC roll-up version uses a lightweight flexible curtain and is mainly used for frequent traffic and environmental separation.
A High Speed Door uses a flexible PVC curtain and focuses on rapid operation and frequent traffic. An Industrial Sectional Door uses rigid panels and is generally selected where insulation, sealing and structural rigidity are more important.
A High Speed Door uses a flexible PVC curtain, while a Hard Fast Door uses rigid aluminum or insulated sections. Hard Fast Doors are better suited to applications requiring greater rigidity, security or wind resistance.
Yes. Radar sensors, vehicle loop detectors and other automatic activation devices can be used to detect approaching forklifts and trigger the opening cycle.
Depending on the configuration, the door can include photoelectric sensors, safety light curtains, bottom safety edges, obstacle detection and automatic reversing.
Yes. Huadun can customize the door size, PVC curtain, vision panel, operating system, activation method, safety devices and control configuration according to the project requirements.
