Aluminum Alloy Roll Up Window

An Aluminum Roller Shutter for Windows, also known as an Aluminum Window Shutter or Exterior Aluminum Roller Shutter, is installed outside a glazed opening to provide adjustable sun shading, privacy, light control and additional window protection.

The curtain is made from horizontally interlocking aluminum slats. When the shutter opens, the slats move upward through vertical guide rails and wind around a roller tube inside the shutter box. When closed, the curtain unwinds and moves downward until the bottom bar reaches the required position.

This compact roll-up structure keeps the shutter above the window when open and requires no swing space around the opening.

Depending on the building design, the shutter box can be surface-mounted, positioned above the window or integrated into the facade.

Solar Shading and Light Control

One of the main advantages of an exterior Aluminum Window Shutter is its ability to control sunlight before it reaches the glazing.

When fully open, the window provides maximum daylight and exterior visibility. When partially lowered, the shutter can reduce direct sunlight and glare while maintaining controlled daylight. When fully closed, it provides greater privacy and reduces exterior visibility.

This adjustable operation makes the system suitable for bedrooms, living rooms, street-facing windows, offices and other areas where daylight and privacy need to be balanced.

Aluminum Slat Construction

Aluminum alloy provides a combination of relatively low weight, corrosion resistance and architectural flexibility, making it suitable for exterior window shutter applications.

Available curtain configurations can include:

● Solid aluminum slats for privacy and protection

● Double-wall slats for increased rigidity

● Foam-filled slats for additional thermal separation

● Perforated slats where ventilation or partial visibility is required

For projects requiring improved thermal performance, foam-filled aluminum profiles can be selected. The overall thermal performance depends on the shutter, window, installation method and building envelope rather than the slat alone.

Motorized Operation

For convenient daily operation, the Aluminum Alloy Roll Up Window can be equipped with a tubular motor installed inside the roller tube.

Depending on the selected control system, operation can include:

● Wall switch

● Remote control

● Centralized control

● Timer control

● Compatible smart-home control

The motor and control system should be selected according to the finished curtain size, weight and operating requirements.

Architectural Integration

The shutter box, guide rails and aluminum curtain can be finished in different colors to coordinate with window frames, exterior walls, villa facades and commercial building exteriors.

For new construction, a concealed or integrated shutter box can be incorporated into the wall or lintel. For renovation projects, surface-mounted configurations can provide a practical installation option.

Huadun manufactures aluminum window roller shutters according to actual window dimensions, facade conditions and project requirements, supporting OEM production and customized architectural solutions.

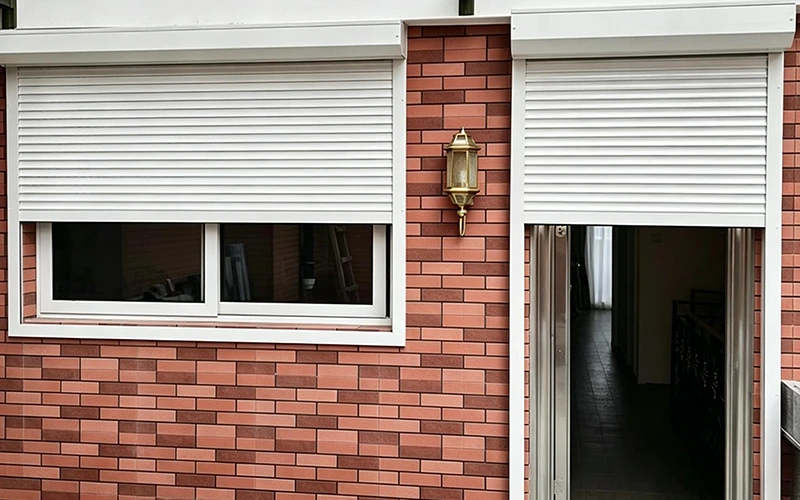

Main Components

An Aluminum Alloy Roll Up Window typically consists of:

● Aluminum alloy shutter slats

● Optional foam-filled profiles

● Roller tube

● Shutter box

● Side guide rails

● Bottom end slat

● Tubular motor or manual mechanism

● Mounting brackets

● Control accessories

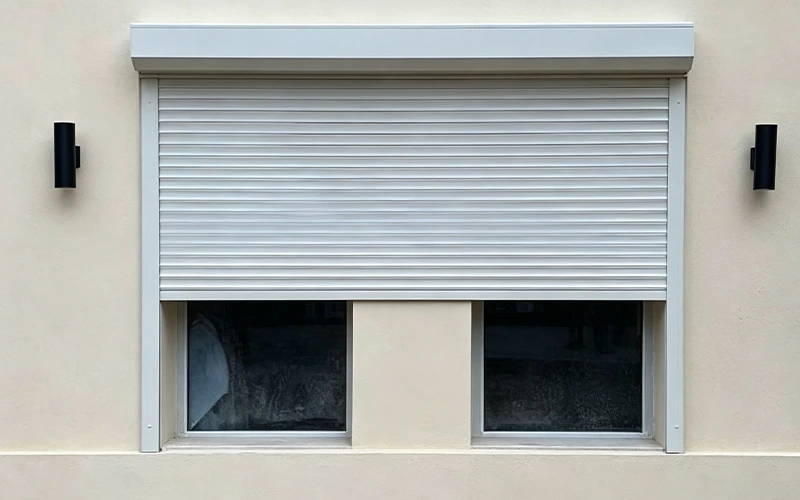

Opening

1.The user activates the motor or manual mechanism.

2.The roller tube rotates.

3.The aluminum curtain moves upward through the guide rails.

4.The slats wind around the roller tube.

5.The curtain is stored inside the upper shutter box.

6.The window becomes fully exposed.

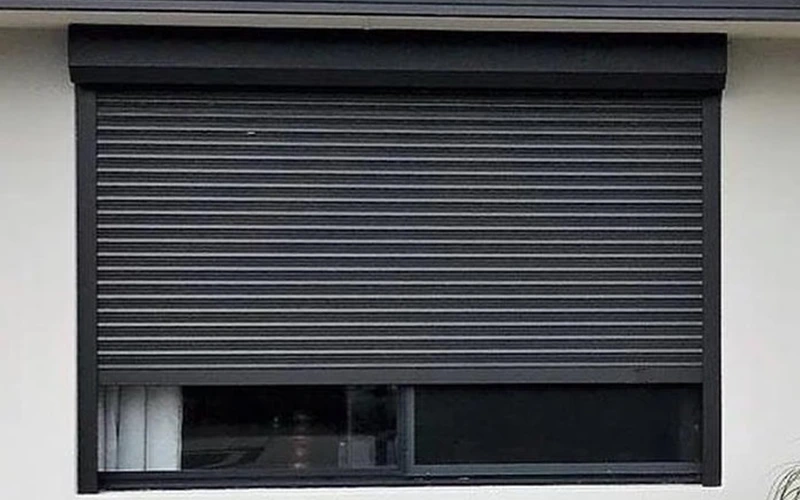

Closing

1.The roller tube rotates in the opposite direction.

2.The curtain unwinds from the shutter box.

3.The slats move downward through the guide rails.

4.The bottom end slat reaches the required position.

5.The window is covered by the aluminum shutter curtain.

The shutter can therefore be stopped at different positions to balance daylight, privacy and solar control.

Note: Maximum dimensions, shutter box size, roller tube, slat specification and motor capacity should be selected according to the actual window dimensions and finished curtain weight.

Thermal, acoustic, security and wind performance depend on the complete product configuration and should only be specified with supporting test data.

Aluminum Alloy Roll Up Windows are suitable for residential and commercial windows where adjustable shading, privacy and architectural integration are required.

Villas & Private Houses

Suitable for:

The shutter can be integrated with the color and design of the window frames and building facade.

Apartments & Residential Buildings

Typical applications include:

The adjustable shutter position allows occupants to control privacy without permanently blocking the window.

Sun-Exposed Windows

Exterior shutters can be lowered during periods of strong sunlight to help reduce glare and direct solar exposure.

They are suitable for:

Hotels & Commercial Buildings

The system can also be used for:

New Construction & Renovation

Different mounting arrangements make the system suitable for both new buildings and existing properties.

Surface-mounted systems are practical for renovation projects, while concealed configurations can be integrated into the facade during new construction.
