Rolling Steel Fire Door is a fire-rated steel shutter system designed to close fire-rated building openings and maintain fire compartmentation between different areas of a building.
Manufactured by Huadun Door Industry, a professional Rolling Steel Fire Door manufacturer and OEM supplier, the system combines an interlocking steel curtain, reinforced steel guides, barrel assembly, dedicated fire motor, fire control panel and alarm linkage system to provide reliable automatic fire closing performance.
Unlike conventional rolling shutters used mainly for daily access or security, a fire-rated rolling steel door is primarily designed for fire protection and emergency operation. When a fire alarm signal is received, the door automatically closes the protected opening and creates a solid steel barrier to help restrict the spread of fire between adjacent compartments.
Huadun provides custom rolling steel fire doors, steel fire shutters and fire-rated rolling shutter solutions for commercial buildings, industrial facilities and public construction projects, with factory-direct manufacturing, OEM production and project-based engineering support.
Fire compartmentation is an important part of building fire protection. However, many commercial and industrial buildings contain openings that are too large or unsuitable for conventional hinged fire doors.
A Rolling Steel Fire Door, also commonly referred to as a Steel Fire Shutter or Fire-Rated Rolling Shutter, provides a compact vertical-closing solution for these openings.
The door curtain is formed from interlocking steel slats that travel vertically inside reinforced side guides. When opened, the curtain coils around the barrel above the opening, reducing the amount of floor and side space required compared with swing-type doors.
The system is equipped with a dedicated fire motor and fire shutter control system. Under normal building conditions, the shutter remains in its designated operating position. When the fire protection system sends an emergency signal, the control system initiates the closing sequence and the steel curtain travels downward along the guides until the opening is fully protected.
Because the principal function of the system is fire compartmentation rather than high-frequency traffic control, the Rolling Steel Fire Door should not be treated as a high-cycle industrial shutter or high-speed door. Its drive and control system are selected primarily to provide dependable operation when fire protection is required.
The solid steel curtain also provides greater mechanical rigidity than fabric-based fire curtain systems, making the product particularly suitable for fire-rated wall openings in factories, warehouses, service areas, plant rooms, parking structures and commercial buildings.
Huadun Door Industry provides custom steel fire shutter manufacturing, OEM fire door production and project-specific engineering support according to opening dimensions, installation conditions, control requirements and the fire protection requirements of each project.
The curtain is constructed from formed steel slats connected into a continuous rolling curtain, providing a rigid and durable barrier for fire-rated openings.
The steel construction also provides greater mechanical strength than fabric curtain systems, making this steel fire shutter suitable for demanding industrial and commercial applications.
The Rolling Steel Fire Door is equipped with a dedicated fire motor designed specifically for fire-rated shutter operation.
The motor works together with the fire control system to carry out the required emergency closing sequence when a fire alarm or control signal is received.
The control system can be integrated with the building fire alarm system.
When an emergency fire signal is received, the shutter automatically enters its fire-closing sequence without requiring manual operation.
When fully closed, the steel curtain covers the protected opening and helps maintain separation between different fire compartments.
This makes the system suitable for openings formed in fire separation walls and other areas where automatic closing protection is required.
The curtain coils above the opening instead of requiring a swing radius.
This vertical rolling arrangement is particularly useful for larger openings or areas where available floor and side space are limited, making the fire-rated rolling shutter a practical solution for space-constrained applications.
The curtain travels inside reinforced side guides that control the movement of the shutter during opening and closing.
Proper guide design also helps maintain the curtain position when the fire shutter is fully closed.
Huadun can manufacture custom Rolling Steel Fire Doors according to project requirements, including:
● Opening width and height
● Steel curtain configuration
● Guide rail configuration
● Headroom and side room conditions
● Fire motor selection
● Control system configuration
● Installation arrangement
A Rolling Steel Fire Door is fundamentally different from a high-speed door or high-cycle industrial roller shutter.
Its primary purpose is to remain ready for dependable emergency closing and fire compartmentation. Where an opening requires very frequent daily traffic, a separate industrial or high-speed access door should normally be considered according to the project design.
● Interlocking steel curtain slats
● Steel barrel / roller assembly
● Reinforced side guides
● Bottom rail
● Dedicated fire motor
● Fire control panel
● Fire alarm interface
● Mounting brackets and supporting components

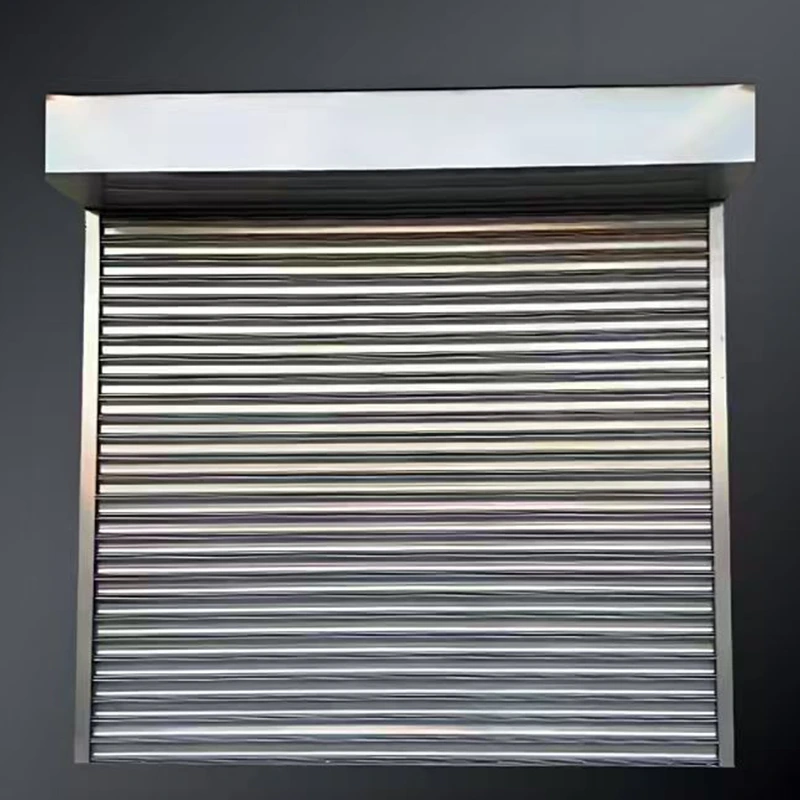

During normal building operation, the curtain remains in the position required by the project and is rolled around the barrel when the opening needs to remain clear.
● The building fire alarm or fire control system generates an emergency signal.
● The fire door control panel receives the signal.
● The dedicated fire motor and control system initiate the closing sequence.
● The steel curtain travels downward inside the side guides.
● The bottom rail reaches the closing position.
● The shutter covers the opening and forms a fire separation barrier.
The principal objective of this sequence is to close the fire-rated opening reliably and maintain building fire compartmentation during an emergency.
| Product Type | Specification |
| Product Name | Rolling Steel Fire Door / Steel Fire Shutter |
| Door Type | Automatic fire-rated rolling steel shutter |
| Curtain Material | Steel fire shutter slats |
| Curtain Structure | Interlocking steel curtain |
| Opening Direction | Vertical rolling |
| Drive System | Dedicated fire motor |
| Control System | Fire shutter control panel |
| Fire Alarm Integration | Available |
| Guide System | Reinforced steel side guides |
| Roller System | Steel barrel / shaft assembly |
| Guide System | Reinforced horizontal guide track |
| Operation Purpose | Fire compartmentation and emergency closing |
| Fire Resistance Rating | 60 / 90 / 120 / 180 minutes |
| Certification Standard | EN1634-1 / UL10D / CCC fire protection standards available |
| Customization | OEM sizes, curtain configurations and control solutions |

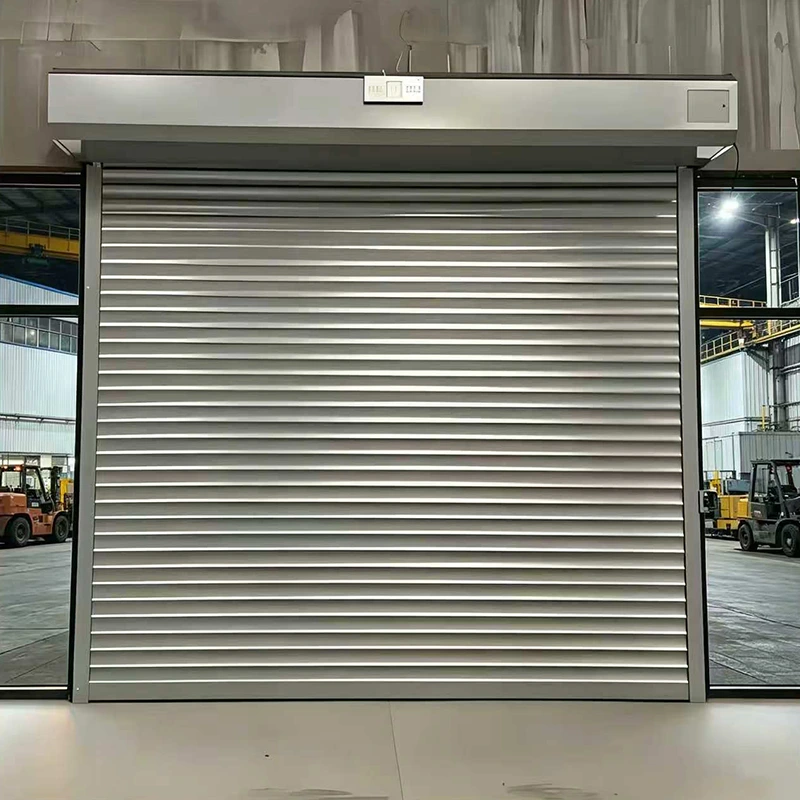

Rolling Steel Fire Doors are mainly used to protect fire-rated openings where a compact steel shutter is required for automatic fire separation.
Industrial Buildings
Factories
Manufacturing facilities
Warehouses
Plant rooms
Equipment areas
Utility rooms
Commercial Buildings
Shopping malls
Commercial complexes
Office buildings
Parking garages
Service corridors
Storage areas
Public & Infrastructure Buildings
Airports
Railway stations
Hospitals
Exhibition centers
Public facilities
Transportation buildings
Special Fire Protection Applications
Fire-rated wall openings
Fire compartment boundaries
Machinery and service openings
Large internal building openings
Openings between different functional areas
Areas where swing fire doors are impractical

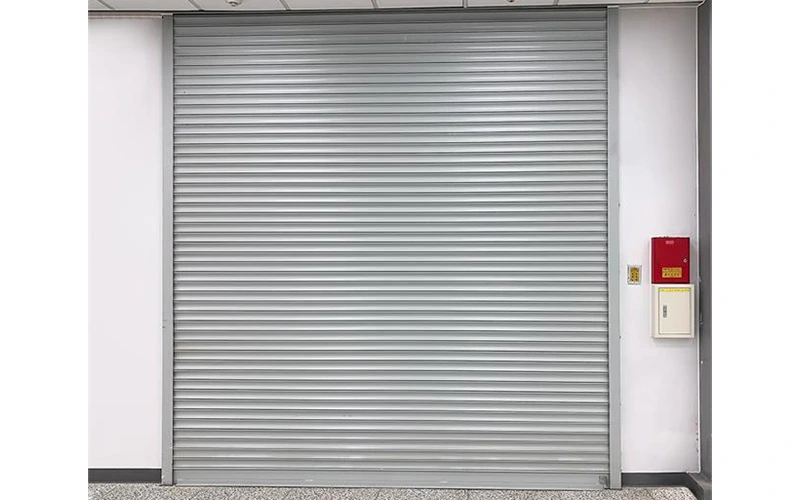

● Different steel curtain specifications
● Customized steel guide rails
● Different fire motor configurations
● Fire alarm linkage control
● Emergency control functions
● Manual emergency operation option
● Backup power / emergency power configuration
● Warning devices
● Customized head box / hood
● Galvanized or project-specified surface finish
● Customized dimensions
● OEM fire door control solutions
Available options should be selected according to the project design, opening size, fire protection requirements and local regulations.
A Rolling Steel Fire Door is an automatic steel shutter designed to close a protected opening during a fire emergency and help maintain fire compartmentation between different areas of a building.
A normal roller shutter is generally designed for daily access, security or environmental separation.
A Rolling Steel Fire Door is specifically configured for fire protection. It uses a fire shutter control system, dedicated fire motor and emergency closing functions so that the protected opening can be closed when a fire signal is received.
Its primary purpose is fire protection and emergency closing rather than high-frequency traffic operation.
If an opening requires continuous or very frequent daily access, an industrial roller shutter, sectional door or high-speed door may be more appropriate for normal traffic, depending on the project requirements.
Yes. The fire shutter control system can be configured to receive fire alarm signals and initiate the required automatic closing sequence.
A typical system includes the steel curtain, barrel assembly, side guides, bottom rail, fire motor, control panel and fire alarm interface.
The final configuration depends on the size and fire protection requirements of the project.
Yes. Huadun manufactures custom rolling steel fire doors according to opening dimensions, structural conditions and project requirements.
The allowable size and final system configuration should be determined during project engineering.
A Steel Fire Shutter uses a rigid steel rolling curtain, while a fire curtain generally uses flexible fire-resistant fabric.
Steel fire shutters are commonly selected where a robust steel closure is required, while fabric fire curtains can be advantageous where architectural concealment, lower curtain weight or particular large-opening configurations are important.
The required fire resistance should be determined by the project's fire strategy, applicable building regulations and the relevant tested or certified system.
Huadun can manufacture the product according to project requirements, but the final rating should always correspond to appropriate supporting test or certification documentation
